Part #: 1-2002

Part Number: 1-2002

Description:

2 Ply OHGR

Color:

White

Plies:

Nominal OAG:

0.09

+/-

0.015

Fabric:

Polyester

Top Surface:

3/64″ Smooth Cover

Top Cover Thickness:

0.046

Bottom Surface:

Friction Surface

Compound:

NBR

Work Tension:

Elongation:

Less than 2%

Weight:

0.054

Minimum Pulley Diameter:

Back Flex Min. Pulley Diameter:

Working Temperature:

0 to 250

Max. Stocked Width:

Top Cover Coefficient of Friction/Steel:

1.4

Bottom Cover Coefficient of Friction/Steel:

0.3

Attributes: FDA Compliant, Oil Resistant, Sliderbed Suitable

1 of 4

1-2002 Close Up

Features:

2 Ply OHGR uses a specially treated fabric designed for maximum ply adhesion, minimal moisture absorption, and long service life in wash-down environments. The construction remains stable even under exposure to oils and fats.

The belt delivers consistent tracking, strong resistance to swelling, and reliable performance in wet or greasy conditions.

It is one of the most widely used food-grade belts in meat processing, fish handling, USDA facilities, agriculture, and FDA-regulated environments requiring low absorption and high oil-resistance.

Image	Fabrication	Description	Fabrication Type
	90CHEV1-1	90 Degree Chevron - 1" x 1" Lug - White Nitrile	Chevron
	A1	Alligator Laced One End	Lacing
	A2	Alligator Laced Both Ends	Lacing
	AC-1	A Section Cleat - Nitrile	Cleat

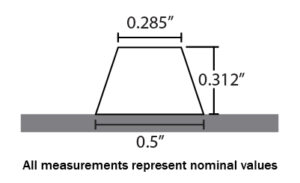

	AV-1	A Section V-Guide - Nitrile	V-Guide
	AVN-1	A Section V-Guide Notched - Nitrile	V-Guide
	B-1	2 Hole Bucket Punch (B-1)	Hole Punch
	B-2	3 Hole Bucket Punch (B-2)	Hole Punch
	B-3	4 Hole Bucket Punch (B-3)	Hole Punch
	B-4	5 Hole Bucket Punch (B-4)	Hole Punch
	B-5	6 Hole Bucket Punch (B-5)	Hole Punch
	B-6	5 Hole Bucket Punch (B-6)	Hole Punch
	B-7	7 Hole Bucket Punch (B-7)	Hole Punch
	B-8	9 Hole Bucket Punch (B-8)	Hole Punch
	BC-1	B Section Cleat - Nitrile	Cleat

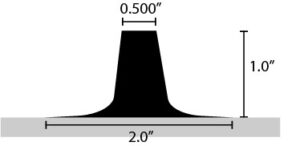

	BC1-1	1" Beefy Cleat - White Nitrile	Cleat

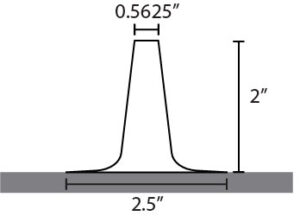

	BC2-1	2" Beefy Cleat - Nitrile	Cleat
	BC3-2	3" Beefy Cleat - SBR	Cleat

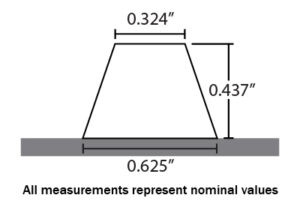

	BV-1	B Section V-Guide - Nitrile	V-Guide
	BVN-1	B Section V-Guide Notched - Nitrile	V-Guide
	C1	Clipper Laced One End	Lacing
	C2	Clipper Laced Both Ends	Lacing
	CC-1	C Section Cleat - Nitrile	Cleat
No image	CFSL2	Spiral Laced Both Ends – Cover Flap	Lacing

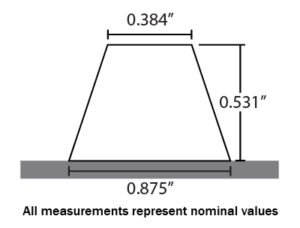

	CVN-1	C Section V-Guide Notched - Nitrile	V-Guide

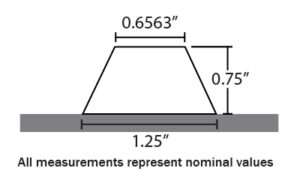

	DV-1	D Section V-Guide - Nitrile	V-Guide
	DVN-1	D Section V-Guide Notched - Nitrile	V-Guide

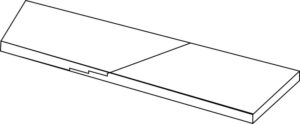

	E-A	Endless - Lap Splice	Endless

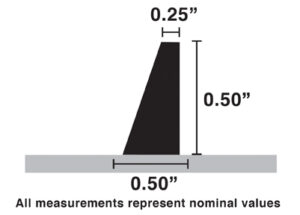

	FLG05-1	1/2" High Flange	Flange
	FLG05S-1	1/2" High Siped Flange - White Nitrile	Flange

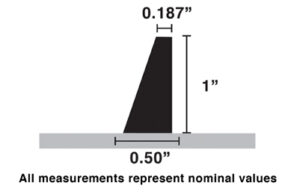

	FLG1-1	1" High Flange --	Flange
	FLG105-1	1-1/2" High Flange	Flange

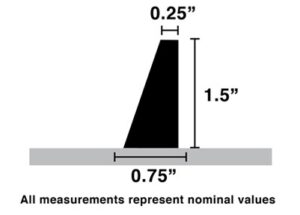

	FLG105S-1	1-1/2" High Siped Flange - White Nitrile	Flange
	FLG1S-1	1" High Siped Flange - Nitrile	Flange
	HLSSU2	S/S Unibar Both Ends – Hidden Lace	Lacing
No image	HP	Hole Punch	Hole Punch
	LONG - LW	Longitudinal Splice - LW	Longitudinal

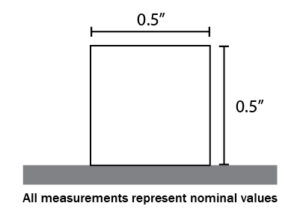

	LUG0505-1	1/2" x 1/2" Lug - Nitrile	Cleat
	LUG11-1	1" x 1" Lug - White Nitrile	Cleat
No image	MS1	Megalloy Staple Laced One End	Lacing
No image	MS2	Megalloy Staple Laced Both Ends	Lacing
	P-1	2 Hole Bucket Punch (P-1)	Hole Punch
	P-2	3 Hole Bucket Punch (P-2)	Hole Punch
	P-3	4 Hole Bucket Punch (P-3)	Hole Punch
	P-4	5 Hole Bucket Punch (P-4)	Hole Punch
	P-5	6 Hole Bucket Punch (P-5)	Hole Punch
	P-7	5 Hole Bucket Punch (P-7)	Hole Punch
	P-8	7 Hole Bucket Punch (P-8)	Hole Punch
	P-9	9 Hole Bucket Punch (P-9)	Hole Punch
	P1	Plastic Rivet Laced One End	Lacing
	P2	Plastic Rivet Laced Both Ends	Lacing
No image	PE-A	Prepared Ends - Lap Splice	Endless
	Perforation	Perforation	Hole Punch
	RS2	Staple Laced Both Ends – Recessed	Lacing
No image	RSSU1	S/S Unibar One End – Recessed	Lacing
No image	RSSU2	S/S Unibar Both Ends – Recessed	Lacing
	S1	Staple Laced One End	Lacing
	S2	Staple Laced Both Ends	Lacing

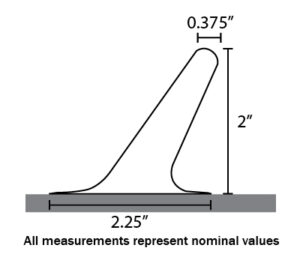

	SC2-1	2" Scoop Cleat - White Nitrile	Cleat
	SC3-1	3" Scoop Cleat - White Nitrile	Cleat

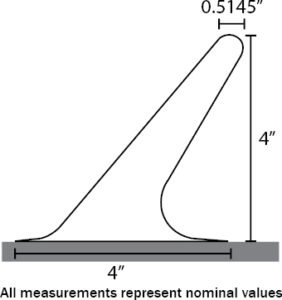

	SC4-1	4" Scoop Cleat - White Nitrile	Cleat
	SL2	Spiral Laced Both Ends	Lacing
	SM1020-1	1" x 2" Scrap Metal Lug - White Nitrile	Cleat
	SS1	S/S Staple Laced One End	Lacing
	SS2	S/S Staple Laced Both Ends	Lacing
	SSA1	S/S Alligator Laced One End	Lacing
	SSA2	S/S Alligator Laced Both Ends	Lacing
	SSC1	S/S Clipper Laced One End	Lacing
	SSC2	S/S Clipper Laced Both Ends	Lacing
	SSU1	S/S Unibar One End	Lacing
	SSU2	S/S Unibar Both Ends	Lacing

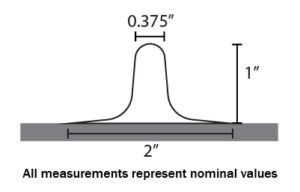

	TC1-1	1" Tee Cleat - Nitrile	Cleat

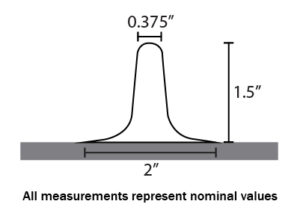

	TC105-1	1-1/2" Tee Cleat - Nitrile	Cleat

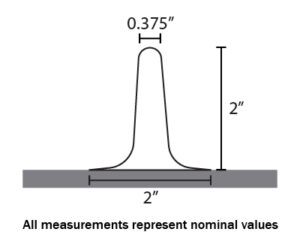

	TC2-1	2" Tee Cleat - Nitrile	Cleat

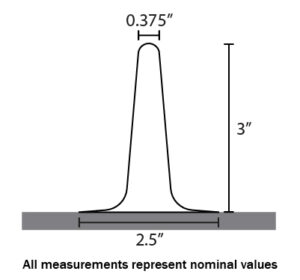

	TC3-1	3" Tee Cleat - Nitrile	Cleat

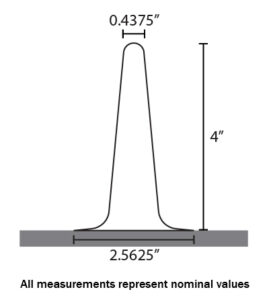

	TC4-1	4" Tee Cleat - Nitrile	Cleat
