Part #: 1-2191

Part Number: 1-2191

Description:

RAV2 W100 Tylertop

Color:

White

Plies:

Nominal OAG:

0.115

+/-

0.015

Fabric:

Polyester

Top Surface:

Tylerwire Impression

Bottom Surface:

Friction Surface

Compound:

RAV

Work Tension:

100

Elongation:

Less than 2%

Weight:

0.06

Minimum Pulley Diameter:

1.5

Back Flex Min. Pulley Diameter:

2.25

Working Temperature:

20 to 180

Max. Stocked Width:

Attributes: FDA Compliant, Oil Resistant, Sliderbed Suitable

1 of 3

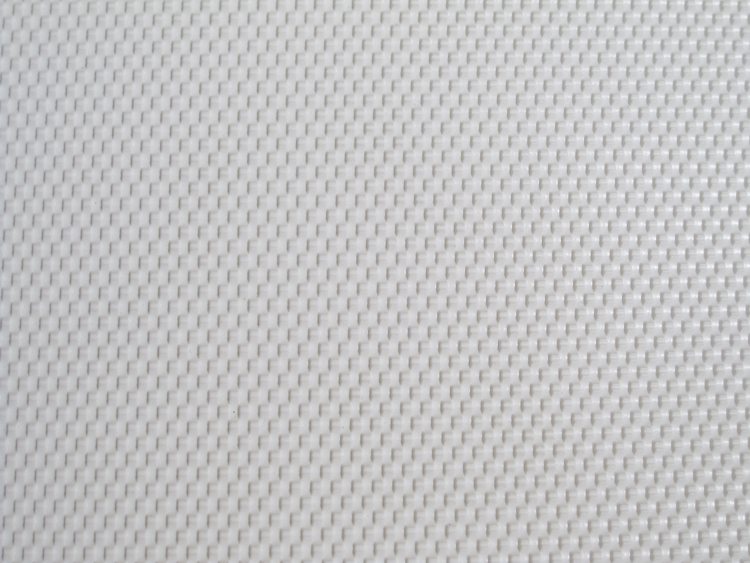

1-2191 Close Up

Features:

1-2191 features the popular RAV compound with a tylerwire impression on the top surface. The belt is easy to clean, flexible, non-marking and is easy to fabricate. Refer to the Chemical Resistance Chart befor choosing a cleaning compound. RAV2 W100 Tylertop is used in food or other industrial application when the product must go up a slight incline or be pulled as in dough rolling. This belt is available with sealed edges to reduce carcass contamination.

Image	Fabrication	Description	Fabrication Type
	A1	Alligator Laced One End	Lacing
	A2	Alligator Laced Both Ends	Lacing
	AC-3	A Section Cleat - PVC	Cleat
	AV-6	A Section V-Guide - RAV	V-Guide
	AVN-6	A Section V-Guide Notched - RAV	V-Guide
	BC-3	B Section Cleat - PVC	Cleat
	BC-6	B Section Cleat - RAV	Cleat
	BC2-6	2" Beefy Cleat - RAV	Cleat
	BV-6	B Section V-Guide - RAV	V-Guide
	BVN-6	B Section V-Guide Notched - RAV	V-Guide
	C1	Clipper Laced One End	Lacing
	C2	Clipper Laced Both Ends	Lacing
	CFA2	Alligator Laced Both Ends – Cover Flap	Lacing
	CFC2	Clipper Laced Both Ends – Cover Flap	Lacing
	CFCSU2	Coated Steel Unibar Both Ends – Cover Flap	Lacing
No image	CFRP2	Plastic Rivet Laced Both Ends – Cover Flap	Lacing
	CFS2	Staple Laced Both Ends – Cover Flap	Lacing
No image	CFSL2	Spiral Laced Both Ends – Cover Flap	Lacing
	CFSS2	S/S Staple Laced Both Ends – Cover Flap	Lacing
	CFSSA2	S/S Alligator Laced Both Ends – Cover Flap	Lacing
	CFSSC2	S/S Clipper Laced Both Ends – Cover Flap	Lacing
	CFSSU2	S/S Unibar Both Ends – Cover Flap	Lacing
	CSU1	Coated Steel Unibar One End	Lacing
	CSU2	Coated Steel Unibar Both Ends	Lacing
	CV-6	C Section V-Guide - RAV	V-Guide
	CVN-6	C Section N-Guide Notched - RAV	V-Guide
	E-A	Endless - Lap Splice	Endless
	E-C	Endless – Finger Splice	Endless
	FLG05-6	1/2" x 1/2" High Flange - RAV	Flange
	FLG1-6	1" High Flange - RAV	Flange
	FLG105-6	1-1/2" High Flange - RAV	Flange
	FLG105DS-6	1-1/2" High Flange Drilled and Siped - RAV	Flange
	FLG105N-6	1-1/2" High Flange Notched - RAV	Flange
	FLG1DS-6	1" High Flange Drilled and Siped - RAV	Flange
No image	FSL2	Finger Spiral Laced Both Ends	Lacing
No image	HLA2	Alligator Laced Both Ends – Hidden Lace	Lacing
No image	HLC2	Clipper Laced Both Ends – Hidden Lace	Lacing
	HLCSU2	Coated Steel Unibar Both Ends – Hidden Lace	Lacing
No image	HLMS2	Megalloy Staple Laced Both Ends – Hidden Lace	Lacing
No image	HLS2	Staple Laced Both Ends – Hidden Lace	Lacing
No image	HLSS2	S/S Staple Laced Both Ends – Hidden Lace	Lacing
No image	HLSSA2	S/S Alligator Laced Both Ends – Hidden Lace	Lacing
No image	HLSSC2	S/S Clipper Laced Both Ends – Hidden Lace	Lacing
	HLSSU2	S/S Unibar Both Ends – Hidden Lace	Lacing
No image	HP	Hole Punch	Hole Punch
	K6V-6	K6 Section V-Guide - RAV	V-Guide
	K6VN-6	K6 Section V-Guide Notched - RAV	V-Guide
	K8V-6	K8 Section V-Guide - RAV	V-Guide
	K8VN-6	K8 Section V-Guide Notched - RAV	V-Guide
	LONG - LW	Longitudinal Splice - LW	Longitudinal
	LUG0505-6	1/2" x 1/2" Lug - RAV	Cleat
	LUG7575-6	3/4" x 3/4" Lug - RAV	Cleat
	OC-6	O Section Cleat - RAV	Cleat
	OV-6	O Section V-Guide - RAV	V-Guide
	OVN-6	O Section V-Guide Notched - RAV	V-Guide
	P1	Plastic Rivet Laced One End	Lacing
	P2	Plastic Rivet Laced Both Ends	Lacing
No image	PE-C	Prepared Ends- Finger Splice	Endless
	Perforation	Perforation	Hole Punch
	S1	Staple Laced One End	Lacing
	S2	Staple Laced Both Ends	Lacing
	SC105-6	1-1/2" Scoop Cleat - RAV	Cleat
No image	SC2-6	2" Scoop Cleat - RAV	Cleat
	SC205-6	2-1/2" Scoop Cleat - RAV	Cleat
	SC3-6	3" Scoop Cleat - RAV	Cleat
	SIW410	1-3/16" Sidewall with Base - Urethane	Sidewall
	SIW415	1-9/16" Sidewall with Base - Urethane	Sidewall
	SIW420	2" High Sidewall with Base - Urethane	Sidewall
	SIW430	3" High Sidewall with Base - Urethane	Sidewall
	SL2	Spiral Laced Both Ends	Lacing
	SS1	S/S Staple Laced One End	Lacing
	SS2	S/S Staple Laced Both Ends	Lacing
	SSA1	S/S Alligator Laced One End	Lacing
	SSA2	S/S Alligator Laced Both Ends	Lacing
	SSC1	S/S Clipper Laced One End	Lacing
	SSC2	S/S Clipper Laced Both Ends	Lacing
	SSU1	S/S Unibar One End	Lacing
	SSU2	S/S Unibar Both Ends	Lacing
	TC05-6	1/2" Tee Cleat - RAV	Cleat
	TC1-6	1" Tee Cleat - RAV	Cleat
	TC105-6	1-1/2" Tee Cleat - RAV	Cleat
	TC2-6	2" Tee Cleat - RAV	Cleat
	TC205-6	2-1/2" Tee Cleat - RAV	Cleat
	TC3-6	3" Tee Cleat - RAV	Cleat
	TC4-6	4" Tee Cleat - RAV	Cleat
	WIB310	1" High Black Weldwall	Sidewall
	WIB315	1-1/2" High Black Weldwall	Sidewall
	WIB320	2" High Black Weldwall	Sidewall
	WIB325	2-1/2" High Black Weldwall	Sidewall
	WIB330	3" High Black Weldwall	Sidewall
	WIW310	1" High White Weldwall	Sidewall
	WIW315	1-1/2" High White Weldwall	Sidewall
	WIW320	2" High White Weldwall	Sidewall
	WIW325	2-1/2" High White Weldwall	Sidewall
	WIW330	3" High White Weldwall	Sidewall
