Part #: 1-2941

Part Number: 1-2941

Description:

R3W Poli-Rigid 12/M/20R/RL

Color:

White

Plies:

Nominal OAG:

0.172

+/-

0.02

Fabric:

Monofilament

Top Surface:

Smooth Cover (Satin)

Bottom Surface:

Bare

Compound:

RAV

Work Tension:

150

Elongation:

Less than 2%

Weight:

0.09

Minimum Pulley Diameter:

Back Flex Min. Pulley Diameter:

4.5

Working Temperature:

20 to 180

Max. Stocked Width:

78.75

Attributes: Cross Rigid, FDA Compliant, Sliderbed Suitable, Anti-Static

1 of 3

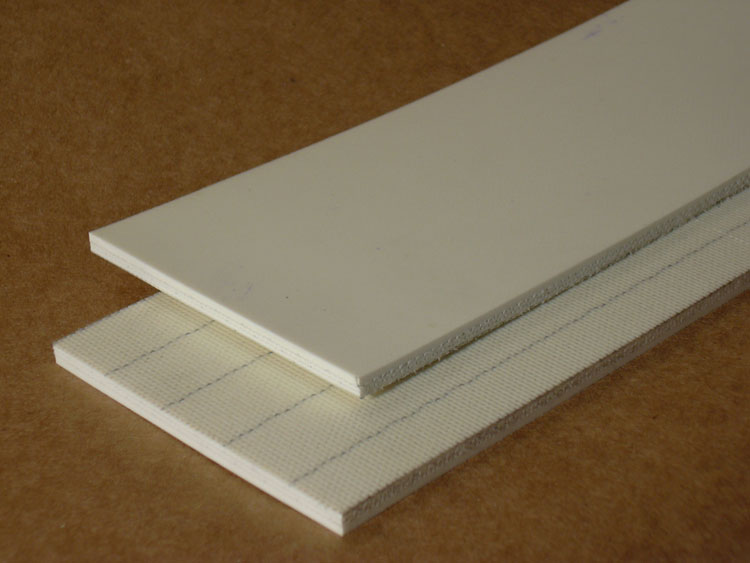

1-2941 Close Up

Features:

1-2941 features an extra stiff, cross lateral, heavy duty carcass with a high release RAV cover. This belt has reliable tracking and good edgewear. R3W Poli-Rigid 12M/20R/BR can be used anywehre a transverse rigid belt is needed. This belt is also resistant to animal, vegetable and mineral oil. It is frequently used for weldwall or cleat fabrication.

Image	Fabrication	Description	Fabrication Type
	A1	Alligator Laced One End	Lacing
	A2	Alligator Laced Both Ends	Lacing

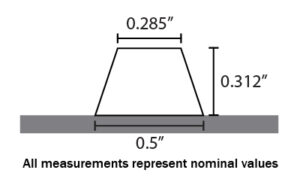

	AC-6	A Section Cleat - RAV	Cleat
	AV-6	A Section V-Guide - RAV	V-Guide
	AVN-6	A Section V-Guide Notched - RAV	V-Guide

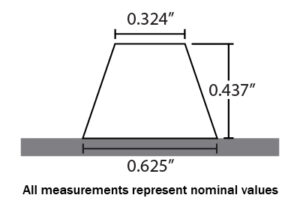

	BC-6	B Section Cleat - RAV	Cleat

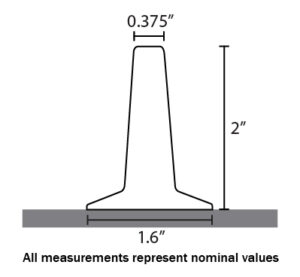

	BC2-6	2" Beefy Cleat - RAV	Cleat
	BV-6	B Section V-Guide - RAV	V-Guide
	BVN-6	B Section V-Guide Notched - RAV	V-Guide

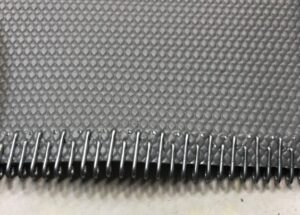

	C1	Clipper Laced One End	Lacing
	C2	Clipper Laced Both Ends	Lacing
	CFA2	Alligator Laced Both Ends – Cover Flap	Lacing
	CFC2	Clipper Laced Both Ends – Cover Flap	Lacing
	CFCSU2	Coated Steel Unibar Both Ends – Cover Flap	Lacing
No image	CFRP2	Plastic Rivet Laced Both Ends – Cover Flap	Lacing
	CFS2	Staple Laced Both Ends – Cover Flap	Lacing
	CFSS2	S/S Staple Laced Both Ends – Cover Flap	Lacing
	CFSSA2	S/S Alligator Laced Both Ends – Cover Flap	Lacing
	CFSSC2	S/S Clipper Laced Both Ends – Cover Flap	Lacing
	CFSSU2	S/S Unibar Both Ends – Cover Flap	Lacing
	CSU1	Coated Steel Unibar One End	Lacing

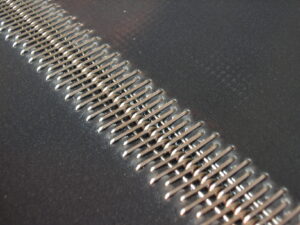

	CSU2	Coated Steel Unibar Both Ends	Lacing
	CV-6	C Section V-Guide - RAV	V-Guide
	CVN-6	C Section N-Guide Notched - RAV	V-Guide
	E-A	Endless - Lap Splice	Endless

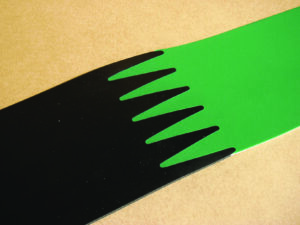

	E-C	Endless – Finger Splice	Endless

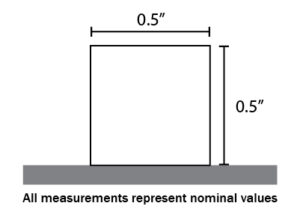

	FLG05-6	1/2" x 1/2" High Flange - RAV	Flange
	FLG1-6	1" High Flange - RAV	Flange
	FLG105-6	1-1/2" High Flange - RAV	Flange

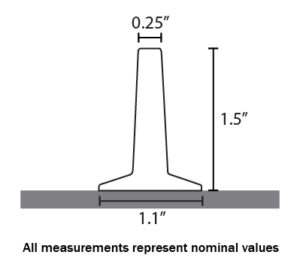

	FLG105DS-6	1-1/2" High Flange Drilled and Siped - RAV	Flange

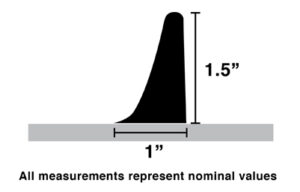

	FLG105N-6	1-1/2" High Flange Notched - RAV	Flange
	FLG1DS-6	1" High Flange Drilled and Siped - RAV	Flange
No image	FR1	Flexco Rivet Laced One End	Lacing
No image	FR2	Flexco Rivet Laced Both Ends	Lacing
No image	HLC2	Clipper Laced Both Ends – Hidden Lace	Lacing

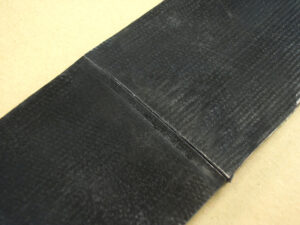

	HLCSU2	Coated Steel Unibar Both Ends – Hidden Lace	Lacing
No image	HLS2	Staple Laced Both Ends – Hidden Lace	Lacing
No image	HLSS2	S/S Staple Laced Both Ends – Hidden Lace	Lacing
	HLSSU2	S/S Unibar Both Ends – Hidden Lace	Lacing
	K6V-6	K6 Section V-Guide - RAV	V-Guide
	K6VN-6	K6 Section V-Guide Notched - RAV	V-Guide
	K8V-6	K8 Section V-Guide - RAV	V-Guide
	K8VN-6	K8 Section V-Guide Notched - RAV	V-Guide
	LONG - LW	Longitudinal Splice - LW	Longitudinal
	LUG0505-6	1/2" x 1/2" Lug - RAV	Cleat

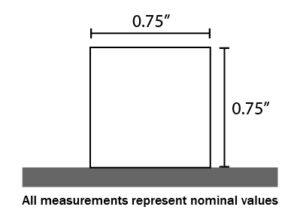

	LUG7575-6	3/4" x 3/4" Lug - RAV	Cleat
	OC-6	O Section Cleat - RAV	Cleat
	OV-6	O Section V-Guide - RAV	V-Guide
	OVN-6	O Section V-Guide Notched - RAV	V-Guide
	P-1	2 Hole Bucket Punch (P-1)	Hole Punch
	P-2	3 Hole Bucket Punch (P-2)	Hole Punch
No image	PE-C	Prepared Ends- Finger Splice	Endless

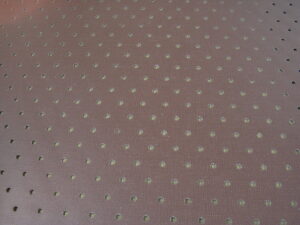

	Perforation	Perforation	Hole Punch
	RC1	Clipper Laced One End - Recessed	Lacing
	RC2	Clipper Laced Both Ends - Recessed	Lacing
No image	RP1	Plastic Rivet Laced One End - Recessed	Lacing
No image	RP2	Plastic Rivet Laced Both Ends - Recessed	Lacing

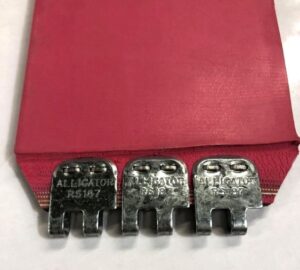

	RS2	Staple Laced Both Ends – Recessed	Lacing
No image	RSS2	S/S Staple Laced Both Ends – Recessed	Lacing

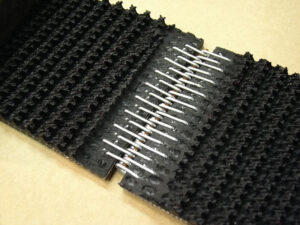

	RSSC2	S/S Clipper Laced Both Ends - Recessed	Lacing
No image	RSSU1	S/S Unibar One End – Recessed	Lacing
No image	RSSU2	S/S Unibar Both Ends – Recessed	Lacing
	S1	Staple Laced One End	Lacing
	S2	Staple Laced Both Ends	Lacing

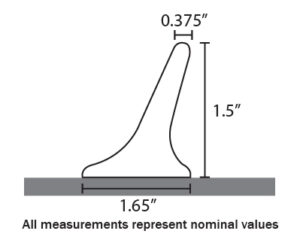

	SC105-6	1-1/2" Scoop Cleat - RAV	Cleat
No image	SC2-6	2" Scoop Cleat - RAV	Cleat

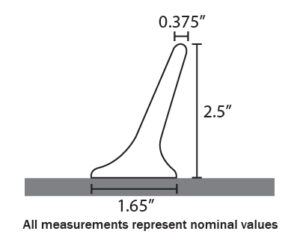

	SC205-6	2-1/2" Scoop Cleat - RAV	Cleat

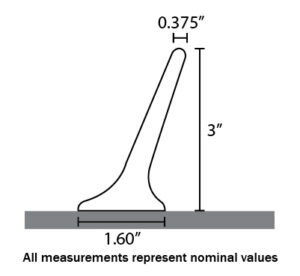

	SC3-6	3" Scoop Cleat - RAV	Cleat

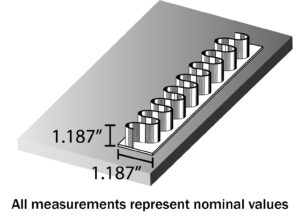

	SIW410	1-3/16" Sidewall with Base - Urethane	Sidewall

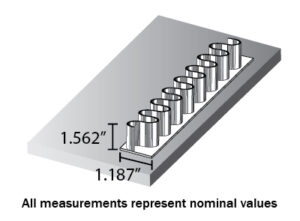

	SIW415	1-9/16" Sidewall with Base - Urethane	Sidewall

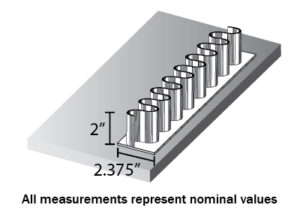

	SIW420	2" High Sidewall with Base - Urethane	Sidewall

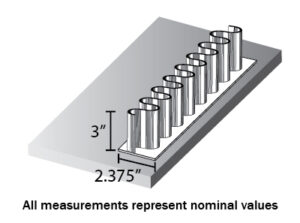

	SIW430	3" High Sidewall with Base - Urethane	Sidewall

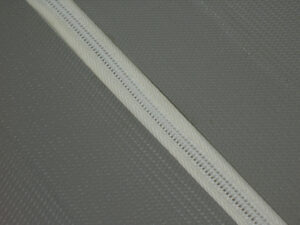

	SL2	Spiral Laced Both Ends	Lacing
	SS1	S/S Staple Laced One End	Lacing

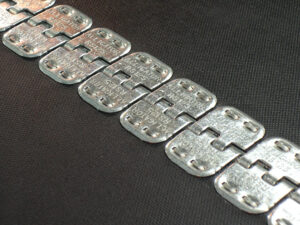

	SS2	S/S Staple Laced Both Ends	Lacing

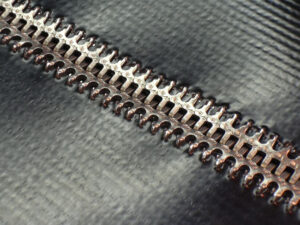

	SSA1	S/S Alligator Laced One End	Lacing
	SSA2	S/S Alligator Laced Both Ends	Lacing
	SSC1	S/S Clipper Laced One End	Lacing
	SSC2	S/S Clipper Laced Both Ends	Lacing
	SSU1	S/S Unibar One End	Lacing
	SSU2	S/S Unibar Both Ends	Lacing

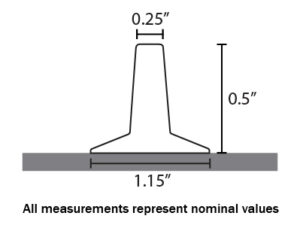

	TC05-6	1/2" Tee Cleat - RAV	Cleat

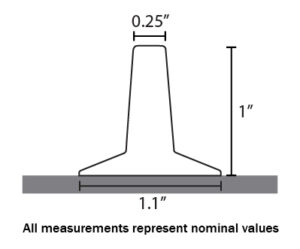

	TC1-6	1" Tee Cleat - RAV	Cleat

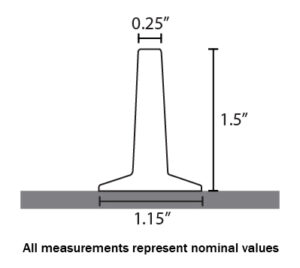

	TC105-6	1-1/2" Tee Cleat - RAV	Cleat

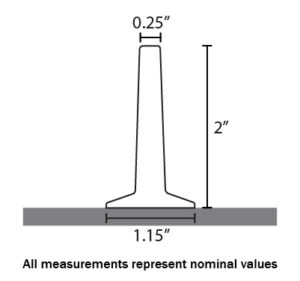

	TC2-6	2" Tee Cleat - RAV	Cleat

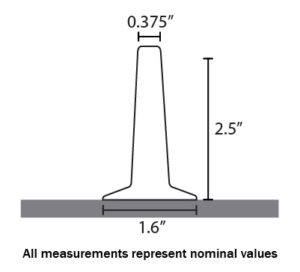

	TC205-6	2-1/2" Tee Cleat - RAV	Cleat
	TC3-6	3" Tee Cleat - RAV	Cleat

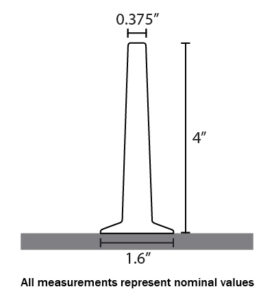

	TC4-6	4" Tee Cleat - RAV	Cleat

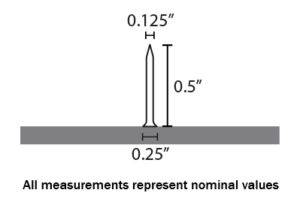

	TL05-6	1/2" Thin Line Cleat - RAV	Cleat

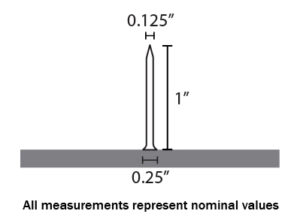

	TL1-6	1" Thin Line Cleat - RAV	Cleat

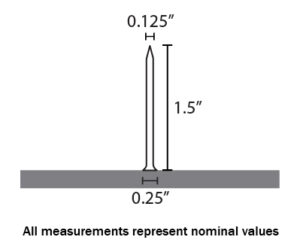

	TL105-6	1-1/2" Thin Line Cleat - RAV	Cleat

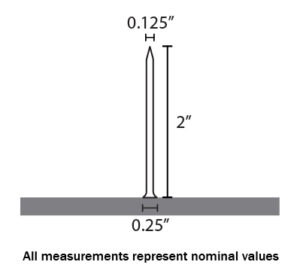

	TL2-6	2" Thin Line Cleat - RAV	Cleat

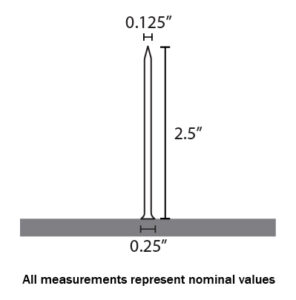

	TL205-6	2-1/2" Thin Line Cleat - RAV	Cleat
	WIB310	1" High Black Weldwall	Sidewall
	WIB315	1-1/2" High Black Weldwall	Sidewall
	WIB320	2" High Black Weldwall	Sidewall
	WIB325	2-1/2" High Black Weldwall	Sidewall
	WIB330	3" High Black Weldwall	Sidewall
	WIW310	1" High White Weldwall	Sidewall

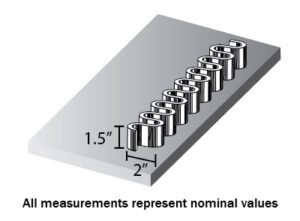

	WIW315	1-1/2" High White Weldwall	Sidewall

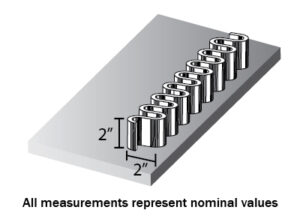

	WIW320	2" High White Weldwall	Sidewall

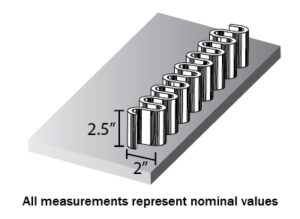

	WIW325	2-1/2" High White Weldwall	Sidewall

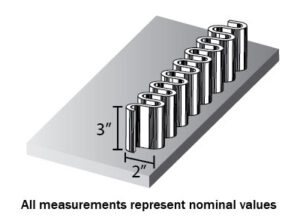

	WIW330	3" High White Weldwall	Sidewall
