Part #: 1-4003

Part Number: 1-4003

Description:

3 Ply Tylerwire

Color:

White

Plies:

Nominal OAG:

0.155

+/-

0.015

Fabric:

Polyester

Top Surface:

Tylerwire Impression

Bottom Surface:

Friction Surface

Compound:

NBR

Work Tension:

150

Elongation:

Less than 2%

Weight:

0.074

Minimum Pulley Diameter:

2.5

Back Flex Min. Pulley Diameter:

3.75

Working Temperature:

0 to 250

Max. Stocked Width:

Top Cover Coefficient of Friction/Steel:

1.3

Bottom Cover Coefficient of Friction/Steel:

0.3

Attributes: FDA Compliant, Oil Resistant, Sliderbed Suitable

1 of 3

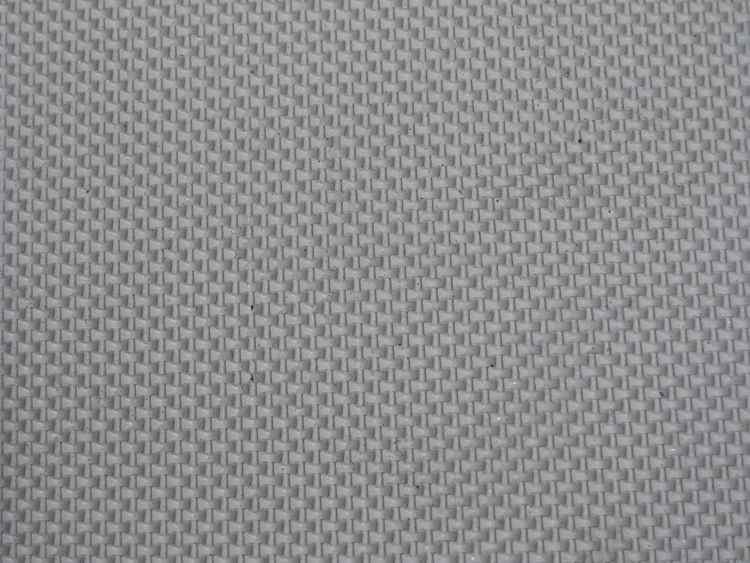

1-4003 Close Up

Features:

This belt features a molded top surface that is excellent for moderate inclines and dough forming. The belt is easy to clean, flexible and non-marking. Refer to the chemical resistance chart when choosing a cleaning solution. 3 Ply Tylerwire is used for dough forming, inclines, pulley lagging and in the laundry industry.

Image	Fabrication	Description	Fabrication Type
	A1	Alligator Laced One End	Lacing
	A2	Alligator Laced Both Ends	Lacing
	AC-1	A Section Cleat - Nitrile	Cleat
	AV-1	A Section V-Guide - Nitrile	V-Guide
	AVN-1	A Section V-Guide Notched - Nitrile	V-Guide
	BC-1	B Section Cleat - Nitrile	Cleat
	BC1-1	1" Beefy Cleat - White Nitrile	Cleat
	BC2-1	2" Beefy Cleat - Nitrile	Cleat
	BC3-2	3" Beefy Cleat - SBR	Cleat
	BV-1	B Section V-Guide - Nitrile	V-Guide
	BVN-1	B Section V-Guide Notched - Nitrile	V-Guide
	C1	Clipper Laced One End	Lacing
	C2	Clipper Laced Both Ends	Lacing
	CC-1	C Section Cleat - Nitrile	Cleat
	CFSSU2	S/S Unibar Both Ends – Cover Flap	Lacing
	CSU1	Coated Steel Unibar One End	Lacing
	CSU2	Coated Steel Unibar Both Ends	Lacing
	CVN-1	C Section V-Guide Notched - Nitrile	V-Guide
	DV-1	D Section V-Guide - Nitrile	V-Guide
	DVN-1	D Section V-Guide Notched - Nitrile	V-Guide
	E-A	Endless - Lap Splice	Endless
	FLG05-1	1/2" High Flange	Flange
	FLG05S-1	1/2" High Siped Flange - White Nitrile	Flange
	FLG1-1	1" High Flange --	Flange
	FLG105-1	1-1/2" High Flange	Flange
	FLG105S-1	1-1/2" High Siped Flange - White Nitrile	Flange
	FLG1S-1	1" High Siped Flange - Nitrile	Flange
No image	HLC2	Clipper Laced Both Ends – Hidden Lace	Lacing
No image	HLSSC2	S/S Clipper Laced Both Ends – Hidden Lace	Lacing
	HLSSU2	S/S Unibar Both Ends – Hidden Lace	Lacing
No image	HP	Hole Punch	Hole Punch
	LONG - LW	Longitudinal Splice - LW	Longitudinal
	LUG0505-1	1/2" x 1/2" Lug - Nitrile	Cleat
	LUG11-1	1" x 1" Lug - White Nitrile	Cleat
No image	MS1	Megalloy Staple Laced One End	Lacing
No image	MS2	Megalloy Staple Laced Both Ends	Lacing
	P1	Plastic Rivet Laced One End	Lacing
No image	PE-A	Prepared Ends - Lap Splice	Endless
	Perforation	Perforation	Hole Punch
No image	RA2	Alligator Laced Both Ends – Recessed	Lacing
	RC2	Clipper Laced Both Ends - Recessed	Lacing
	RS1	Staple Laced One End – Recessed	Lacing
	RS2	Staple Laced Both Ends – Recessed	Lacing
No image	RSS2	S/S Staple Laced Both Ends – Recessed	Lacing
No image	RSSU1	S/S Unibar One End – Recessed	Lacing
No image	RSSU2	S/S Unibar Both Ends – Recessed	Lacing
	S1	Staple Laced One End	Lacing
	S2	Staple Laced Both Ends	Lacing
	SC2-1	2" Scoop Cleat - White Nitrile	Cleat
	SC3-1	3" Scoop Cleat - White Nitrile	Cleat
	SC4-1	4" Scoop Cleat - White Nitrile	Cleat
	SL2	Spiral Laced Both Ends	Lacing
	SM1020-1	1" x 2" Scrap Metal Lug - White Nitrile	Cleat
	SS1	S/S Staple Laced One End	Lacing
	SS2	S/S Staple Laced Both Ends	Lacing
	SSA1	S/S Alligator Laced One End	Lacing
	SSA2	S/S Alligator Laced Both Ends	Lacing
	SSC1	S/S Clipper Laced One End	Lacing
	SSC2	S/S Clipper Laced Both Ends	Lacing
	SSU1	S/S Unibar One End	Lacing
	SSU2	S/S Unibar Both Ends	Lacing
	TC1-1	1" Tee Cleat - Nitrile	Cleat
	TC105-1	1-1/2" Tee Cleat - Nitrile	Cleat
	TC2-1	2" Tee Cleat - Nitrile	Cleat
	TC3-1	3" Tee Cleat - Nitrile	Cleat
	TC4-1	4" Tee Cleat - Nitrile	Cleat
