Part #: 2-1121

Part Number: 2-1121

Description:

B1200 COS

Color:

Black

Plies:

Nominal OAG:

0.135

+/-

0.015

Fabric:

Interwoven Polyester

Top Surface:

Smooth

Bottom Surface:

Brushed

Compound:

PVC

Work Tension:

120

Elongation:

Less than 3%

Weight:

0.07

Minimum Pulley Diameter:

Back Flex Min. Pulley Diameter:

4.5

Working Temperature:

0 to 180

Max. Stocked Width:

Top Cover Coefficient of Friction/Steel:

0.8

Bottom Cover Coefficient of Friction/Steel:

0.5

Attributes: Sliderbed Suitable

1 of 3

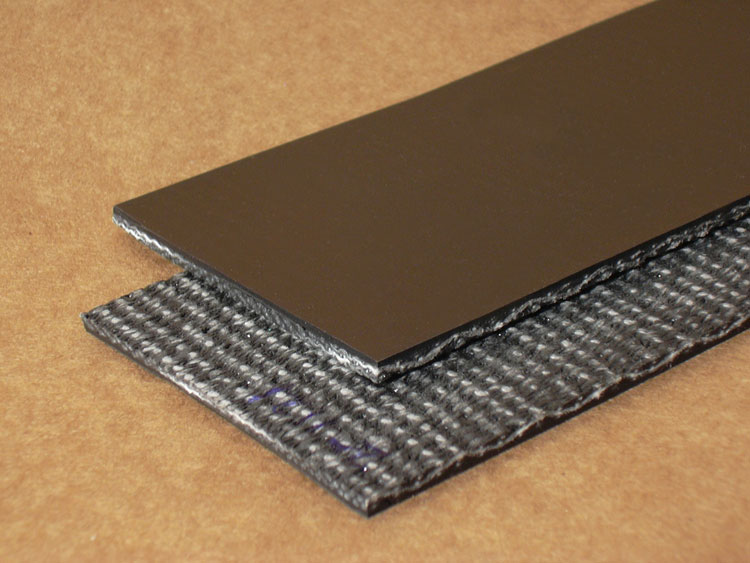

2-1121 Close Up

Features:

2-1121 features the popular interwoven carcass and a smooth PVC top cover. The bottom cover is brushed clean to lower the coefficient of friction. It offers high strength, low stretch and high lace retention. B1200 COS is a medium duty general purpose conveyor belt that can be used in most industries.

Image	Fabrication	Description	Fabrication Type
	A1	Alligator Laced One End	Lacing
	A2	Alligator Laced Both Ends	Lacing
	AC-3	A Section Cleat - PVC	Cleat
	AV-3	A Section V-Guide - PVC	V-Guide
	AVN-3	A Section V-Guide Notched - PVC	V-Guide
	B-1	2 Hole Bucket Punch (B-1)	Hole Punch
	B-2	3 Hole Bucket Punch (B-2)	Hole Punch
	B-3	4 Hole Bucket Punch (B-3)	Hole Punch
	B-4	5 Hole Bucket Punch (B-4)	Hole Punch
	BC-3	B Section Cleat - PVC	Cleat
	BC2-3	2" Beefy Cleat - PVC	Cleat
	BV-3	B Section V-Guide - PVC	V-Guide
	BVN-3	B Section V-Guide Notched - PVC	V-Guide
	C1	Clipper Laced One End	Lacing
	C2	Clipper Laced Both Ends	Lacing
	CC-3	C Section Cleat - PVC	Cleat
	CSU1	Coated Steel Unibar One End	Lacing
	CSU2	Coated Steel Unibar Both Ends	Lacing
	CV-3	C Section V-Guide - PVC	V-Guide
	CVN-3	C Section V-Guide Notched - PVC	V-Guide
	E-G	Endless - Finger Splice Interwoven 1	Endless
	FH2	Flexco Hinge Laced Both Ends	Lacing
	FLG05-3	1/2" x 1/2" High Flange - PVC	Flange
	FLG1-3	1" High Flange - PVC	Flange
	FLG105-3	1-1/2" High Flange - PVC	Flange
	FLG105DS-3	1-1/2" High Flange Drilled and Siped - PVC	Flange
	FLG105N-3	1-1/2" High Flange Notched - PVC	Flange
	FLG1DS-3	1" High Flange Drilled and Siped - PVC	Flange
	FLG1DS-6	1" High Flange Drilled and Siped - RAV	Flange
No image	FR1	Flexco Rivet Laced One End	Lacing
No image	FR2	Flexco Rivet Laced Both Ends	Lacing
No image	HLA2	Alligator Laced Both Ends – Hidden Lace	Lacing
No image	HLC2	Clipper Laced Both Ends – Hidden Lace	Lacing
	HLCSU2	Coated Steel Unibar Both Ends – Hidden Lace	Lacing
No image	HLSSA2	S/S Alligator Laced Both Ends – Hidden Lace	Lacing
No image	HLSSC2	S/S Clipper Laced Both Ends – Hidden Lace	Lacing
	HLSSU2	S/S Unibar Both Ends – Hidden Lace	Lacing
No image	HP	Hole Punch	Hole Punch
	K6V-3	K6 Section V-Guide - PVC	V-Guide
	K6VN-3	K6 Section V-Guide Notched - PVC	V-Guide
	K8V-3	K8 Section V-Guide - PVC	V-Guide
	K8VN-3	K8 Section V-Guide Notched - PVC	V-Guide
	LONG - IW	Longitudinal Splice - IW	Longitudinal
	LUG0505-3	1/2" x 1/2" Lug - PVC	Cleat
	LUG7575-3	3/4" x 3/4" Lug - PVC	Cleat
No image	MS1	Megalloy Staple Laced One End	Lacing
No image	MS2	Megalloy Staple Laced Both Ends	Lacing
	OC-3	O Section Cleat - PVC	Cleat
	OV-3	O Section V-Guide - PVC	V-Guide
	OVN-3	O Section V-Guide Notched - PVC	V-Guide
	P-1	2 Hole Bucket Punch (P-1)	Hole Punch
	P-2	3 Hole Bucket Punch (P-2)	Hole Punch
	P-3	4 Hole Bucket Punch (P-3)	Hole Punch
	P-4	5 Hole Bucket Punch (P-4)	Hole Punch
	P-5	6 Hole Bucket Punch (P-5)	Hole Punch
	P-7	5 Hole Bucket Punch (P-7)	Hole Punch
	P1	Plastic Rivet Laced One End	Lacing
	P2	Plastic Rivet Laced Both Ends	Lacing
No image	PE-G	Prepared Ends – Interwoven Finger Splice 1	Endless
	Perforation	Perforation	Hole Punch
No image	RA1	Alligator Laced One End – Recessed	Lacing
No image	RA2	Alligator Laced Both Ends – Recessed	Lacing
	RC2	Clipper Laced Both Ends - Recessed	Lacing
	RS1	Staple Laced One End – Recessed	Lacing
	RS2	Staple Laced Both Ends – Recessed	Lacing
	RSS1	S/S Staple Laced One End – Recessed	Lacing
No image	RSS2	S/S Staple Laced Both Ends – Recessed	Lacing
No image	RSSA1	S/S Alligator Laced One End – Recessed	Lacing
No image	RSSA2	S/S Alligator Laced Both Ends – Recessed	Lacing
	RSSC1	S/S Clipper Laced One End - Recessed	Lacing
	RSSC2	S/S Clipper Laced Both Ends - Recessed	Lacing
No image	RSSU1	S/S Unibar One End – Recessed	Lacing
No image	RSSU2	S/S Unibar Both Ends – Recessed	Lacing
	S1	Staple Laced One End	Lacing
	S2	Staple Laced Both Ends	Lacing
	SC105-3	1-1/2" Scoop Cleat - PVC	Cleat
	SC2-3	2" Scoop Cleat - PVC	Cleat
	SC205-3	2-1/2" Scoop Cleat - PVC	Cleat
	SC3-3	3" Scoop Cleat - PVC	Cleat
	SIW410	1-3/16" Sidewall with Base - Urethane	Sidewall
	SIW415	1-9/16" Sidewall with Base - Urethane	Sidewall
	SIW420	2" High Sidewall with Base - Urethane	Sidewall
	SIW430	3" High Sidewall with Base - Urethane	Sidewall
	SS1	S/S Staple Laced One End	Lacing
	SS2	S/S Staple Laced Both Ends	Lacing
	SS35SBRCBS-FI	Super Screw 35, SBR, Gal. Steel, CBS	Lacing
	SSA1	S/S Alligator Laced One End	Lacing
	SSA2	S/S Alligator Laced Both Ends	Lacing
	SSC1	S/S Clipper Laced One End	Lacing
	SSC2	S/S Clipper Laced Both Ends	Lacing
	SSU1	S/S Unibar One End	Lacing
	SSU2	S/S Unibar Both Ends	Lacing
	TC05-3	1/2" Tee Cleat - PVC	Cleat
	TC1-3	1" Tee Cleat - PVC	Cleat
	TC105-3	1-1/2" Tee Cleat - PVC	Cleat
	TC2-3	2" Tee Cleat - PVC	Cleat
	TC205-3	2-1/2" Tee Cleat - PVC	Cleat
	TC3-3	3" Tee Cleat - PVC	Cleat
	TC4-3	4" Tee Cleat - PVC	Cleat
	TL05-3	1/2" Thin Line Cleat - PVC	Cleat
	TL1-3	1" Thin Line Cleat - PVC	Cleat
	TL105-3	1-1/2" Thin Line Cleat - PVC	Cleat
	TL2-3	2" Thin Line Cleat - PVC	Cleat
	TL205-3	2-1/2" Thin Line Cleat - PVC	Cleat
	WIB310	1" High Black Weldwall	Sidewall
	WIB315	1-1/2" High Black Weldwall	Sidewall
