Part #: 2-2121

Part Number: 2-2121

Description:

W1200 COS Plus

Color:

White

Plies:

Nominal OAG:

0.145

+/-

0.02

Fabric:

Interwoven Polyester

Top Surface:

Smooth Cover

Bottom Surface:

Friction Surface

Compound:

PVC

Work Tension:

120

Elongation:

Less than 2%

Weight:

0.083

Minimum Pulley Diameter:

Back Flex Min. Pulley Diameter:

Working Temperature:

20 to 180

Max. Stocked Width:

Attributes: FDA Compliant, Sliderbed Suitable

1 of 3

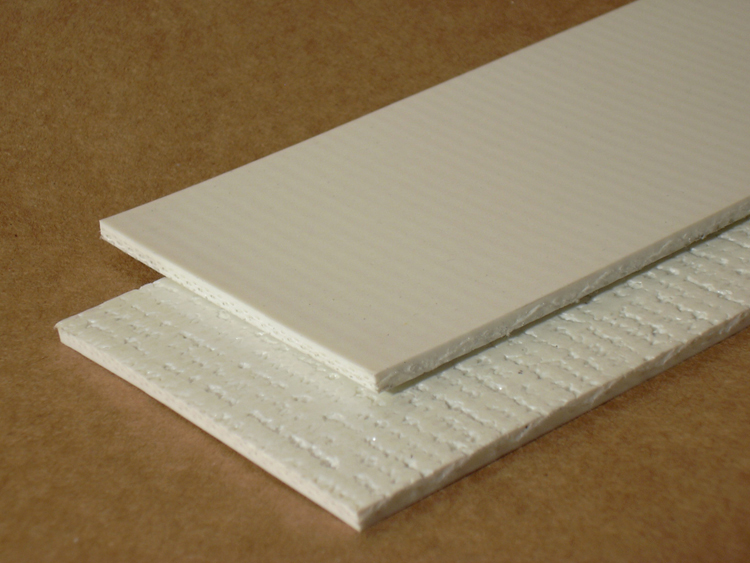

2-2121 Close Up

Features:

2-2121 features a smooth, oil-resistant PVC cover supported by a tightly interwoven polyester carcass, providing durability, flexibility, and clean product release. Special additives are blended into the PVC compound to improve resistance to animal and vegetable oils, making it suitable for food-handling environments where exposure to fats and processing fluids is common. This construction also accepts specialty fabrication exceptionally well, allowing the addition of cleats, guides, and other custom features.

W1200 COS Plus is widely used as a general-purpose food-handling belt and can be applied in select chicken and meat-processing operations depending on the specific conditions and sanitation requirements.

Image	Fabrication	Description	Fabrication Type
	A1	Alligator Laced One End	Lacing
	A2	Alligator Laced Both Ends	Lacing
	AC-3	A Section Cleat - PVC	Cleat
	AV-3	A Section V-Guide - PVC	V-Guide
	AVN-3	A Section V-Guide Notched - PVC	V-Guide
	BC-3	B Section Cleat - PVC	Cleat
	BC2-3	2" Beefy Cleat - PVC	Cleat
	BV-3	B Section V-Guide - PVC	V-Guide
	BVN-3	B Section V-Guide Notched - PVC	V-Guide
	C1	Clipper Laced One End	Lacing
	C2	Clipper Laced Both Ends	Lacing
	CC-3	C Section Cleat - PVC	Cleat
	CV-3	C Section V-Guide - PVC	V-Guide
	CVN-3	C Section V-Guide Notched - PVC	V-Guide
	E-G	Endless - Finger Splice Interwoven 1	Endless
	FLG05-3	1/2" x 1/2" High Flange - PVC	Flange
	FLG1-3	1" High Flange - PVC	Flange
	FLG105-3	1-1/2" High Flange - PVC	Flange
	FLG105DS-3	1-1/2" High Flange Drilled and Siped - PVC	Flange
	FLG105N-3	1-1/2" High Flange Notched - PVC	Flange
	FLG1DS-3	1" High Flange Drilled and Siped - PVC	Flange
	FLG1DS-6	1" High Flange Drilled and Siped - RAV	Flange
No image	HLC2	Clipper Laced Both Ends – Hidden Lace	Lacing
	HLSSU2	S/S Unibar Both Ends – Hidden Lace	Lacing
No image	HP	Hole Punch	Hole Punch
	K6V-3	K6 Section V-Guide - PVC	V-Guide
	K6VN-3	K6 Section V-Guide Notched - PVC	V-Guide
	K8V-3	K8 Section V-Guide - PVC	V-Guide
	K8VN-3	K8 Section V-Guide Notched - PVC	V-Guide
	LUG0505-3	1/2" x 1/2" Lug - PVC	Cleat
	LUG7575-3	3/4" x 3/4" Lug - PVC	Cleat
No image	MS1	Megalloy Staple Laced One End	Lacing
No image	MS2	Megalloy Staple Laced Both Ends	Lacing
	OC-3	O Section Cleat - PVC	Cleat
	OV-3	O Section V-Guide - PVC	V-Guide
	OVN-3	O Section V-Guide Notched - PVC	V-Guide
	P-1	2 Hole Bucket Punch (P-1)	Hole Punch
	P-2	3 Hole Bucket Punch (P-2)	Hole Punch
	P-3	4 Hole Bucket Punch (P-3)	Hole Punch
	P-4	5 Hole Bucket Punch (P-4)	Hole Punch
	P-5	6 Hole Bucket Punch (P-5)	Hole Punch
	P-7	5 Hole Bucket Punch (P-7)	Hole Punch
	P-8	7 Hole Bucket Punch (P-8)	Hole Punch
	P-9	9 Hole Bucket Punch (P-9)	Hole Punch
	P1	Plastic Rivet Laced One End	Lacing
	P2	Plastic Rivet Laced Both Ends	Lacing
No image	PE-G	Prepared Ends – Interwoven Finger Splice 1	Endless
	Perforation	Perforation	Hole Punch
	RC2	Clipper Laced Both Ends - Recessed	Lacing
No image	RSS2	S/S Staple Laced Both Ends – Recessed	Lacing
	S1	Staple Laced One End	Lacing
	S2	Staple Laced Both Ends	Lacing
	SC105-3	1-1/2" Scoop Cleat - PVC	Cleat
	SC2-3	2" Scoop Cleat - PVC	Cleat
	SC205-3	2-1/2" Scoop Cleat - PVC	Cleat
	SC3-3	3" Scoop Cleat - PVC	Cleat
	SIW410	1-3/16" Sidewall with Base - Urethane	Sidewall
	SIW415	1-9/16" Sidewall with Base - Urethane	Sidewall
	SIW420	2" High Sidewall with Base - Urethane	Sidewall
	SIW430	3" High Sidewall with Base - Urethane	Sidewall
	SS1	S/S Staple Laced One End	Lacing
	SS2	S/S Staple Laced Both Ends	Lacing
	SSA1	S/S Alligator Laced One End	Lacing
	SSA2	S/S Alligator Laced Both Ends	Lacing
	SSC1	S/S Clipper Laced One End	Lacing
	SSC2	S/S Clipper Laced Both Ends	Lacing
	SSU1	S/S Unibar One End	Lacing
	SSU2	S/S Unibar Both Ends	Lacing
	TC05-3	1/2" Tee Cleat - PVC	Cleat
	TC1-3	1" Tee Cleat - PVC	Cleat
	TC105-3	1-1/2" Tee Cleat - PVC	Cleat
	TC2-3	2" Tee Cleat - PVC	Cleat
	TC205-3	2-1/2" Tee Cleat - PVC	Cleat
	TC3-3	3" Tee Cleat - PVC	Cleat
	TC4-3	4" Tee Cleat - PVC	Cleat
	TL05-3	1/2" Thin Line Cleat - PVC	Cleat
	TL1-3	1" Thin Line Cleat - PVC	Cleat
	TL105-3	1-1/2" Thin Line Cleat - PVC	Cleat
	TL2-3	2" Thin Line Cleat - PVC	Cleat
	TL205-3	2-1/2" Thin Line Cleat - PVC	Cleat
	WIW310	1" High White Weldwall	Sidewall
	WIW315	1-1/2" High White Weldwall	Sidewall
