Part #: 2-2201

Part Number: 2-2201

Description:

W2000 COS

Color:

White

Plies:

Nominal OAG:

0.21

+/-

0.02

Fabric:

Interwoven Polyester

Top Surface:

Smooth PVC

Bottom Surface:

Friction Surface

Compound:

PVC

Work Tension:

200

Elongation:

Less than 2%

Weight:

0.11

Minimum Pulley Diameter:

Back Flex Min. Pulley Diameter:

Working Temperature:

0 to 180

Max. Stocked Width:

Top Cover Coefficient of Friction/Steel:

0.9

Bottom Cover Coefficient of Friction/Steel:

0.8

Attributes: FDA Compliant, Oil Resistant, Sliderbed Suitable

1 of 1


Features:

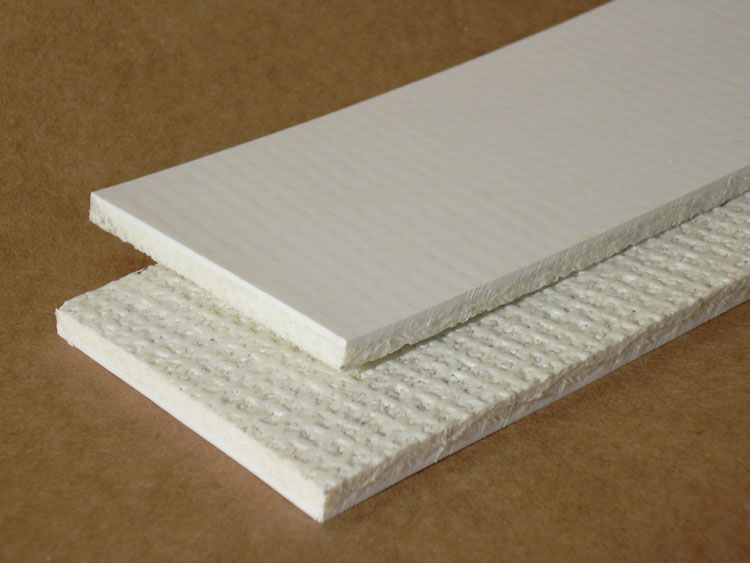

2-2201 features a smooth, oil-resistant PVC cover reinforced by a tightly interwoven polyester carcass, providing a stable, low-stretch construction that lies flat and tracks reliably. The belt offers moderate oil resistance, performing well in food-handling environments where exposure to vegetable oils, moisture, or processing fluids occurs. It also accepts specialty fabrication easily, making it suitable for cleats, guides, and other tailored modifications. For best results, consult the chemical resistance chart when selecting cleaning solutions.

W2000 COS is used as a heavy-duty, general-purpose food-handling belt and may be applied in certain chicken and meat-processing operations depending on specific conditions. Its durability and adaptability make 2-2201 a versatile option for a range of medium-duty food-processing applications.

Image	Fabrication	Description	Fabrication Type
	A1	Alligator Laced One End	Lacing
	A2	Alligator Laced Both Ends	Lacing
	AC-3	A Section Cleat - PVC	Cleat
	AV-3	A Section V-Guide - PVC	V-Guide
	AVN-3	A Section V-Guide Notched - PVC	V-Guide
	BC-3	B Section Cleat - PVC	Cleat
	BC2-3	2" Beefy Cleat - PVC	Cleat
	BV-3	B Section V-Guide - PVC	V-Guide
	BVN-3	B Section V-Guide Notched - PVC	V-Guide
	C1	Clipper Laced One End	Lacing
	C2	Clipper Laced Both Ends	Lacing
	CC-3	C Section Cleat - PVC	Cleat
	CV-3	C Section V-Guide - PVC	V-Guide
	CVN-3	C Section V-Guide Notched - PVC	V-Guide
	E-H	Endless - Finger Splice Interwoven 2	Endless
	FLG05-3	1/2" x 1/2" High Flange - PVC	Flange
	FLG1-3	1" High Flange - PVC	Flange
	FLG105-3	1-1/2" High Flange - PVC	Flange
	FLG105DS-3	1-1/2" High Flange Drilled and Siped - PVC	Flange
	FLG105N-3	1-1/2" High Flange Notched - PVC	Flange
	FLG1DS-3	1" High Flange Drilled and Siped - PVC	Flange
	FLG1DS-6	1" High Flange Drilled and Siped - RAV	Flange
No image	FR2	Flexco Rivet Laced Both Ends	Lacing
No image	HLS2	Staple Laced Both Ends – Hidden Lace	Lacing
No image	HLSS2	S/S Staple Laced Both Ends – Hidden Lace	Lacing
No image	HP	Hole Punch	Hole Punch
	K6V-3	K6 Section V-Guide - PVC	V-Guide
	K6VN-3	K6 Section V-Guide Notched - PVC	V-Guide
	K8V-3	K8 Section V-Guide - PVC	V-Guide
	K8VN-3	K8 Section V-Guide Notched - PVC	V-Guide
	LUG0505-3	1/2" x 1/2" Lug - PVC	Cleat
	LUG7575-3	3/4" x 3/4" Lug - PVC	Cleat
No image	MS1	Megalloy Staple Laced One End	Lacing
No image	MS2	Megalloy Staple Laced Both Ends	Lacing
	OC-3	O Section Cleat - PVC	Cleat
	OV-3	O Section V-Guide - PVC	V-Guide
	OVN-3	O Section V-Guide Notched - PVC	V-Guide
	P-1	2 Hole Bucket Punch (P-1)	Hole Punch
	P-2	3 Hole Bucket Punch (P-2)	Hole Punch
	P-3	4 Hole Bucket Punch (P-3)	Hole Punch
	P-4	5 Hole Bucket Punch (P-4)	Hole Punch
	P-5	6 Hole Bucket Punch (P-5)	Hole Punch
	P-7	5 Hole Bucket Punch (P-7)	Hole Punch
	P-8	7 Hole Bucket Punch (P-8)	Hole Punch
	P-9	9 Hole Bucket Punch (P-9)	Hole Punch
	P1	Plastic Rivet Laced One End	Lacing
	P2	Plastic Rivet Laced Both Ends	Lacing
No image	PE-H	Prepared Ends – Interwoven Finger Splice 2	Endless
	Perforation	Perforation	Hole Punch
	RC1	Clipper Laced One End - Recessed	Lacing
	RC2	Clipper Laced Both Ends - Recessed	Lacing
No image	RP2	Plastic Rivet Laced Both Ends - Recessed	Lacing
	RSS1	S/S Staple Laced One End – Recessed	Lacing
No image	RSS2	S/S Staple Laced Both Ends – Recessed	Lacing
	RSSC1	S/S Clipper Laced One End - Recessed	Lacing
	RSSC2	S/S Clipper Laced Both Ends - Recessed	Lacing
	S1	Staple Laced One End	Lacing
	S2	Staple Laced Both Ends	Lacing
	SC105-3	1-1/2" Scoop Cleat - PVC	Cleat
	SC2-3	2" Scoop Cleat - PVC	Cleat
	SC205-3	2-1/2" Scoop Cleat - PVC	Cleat
	SC3-3	3" Scoop Cleat - PVC	Cleat
	SIW410	1-3/16" Sidewall with Base - Urethane	Sidewall
	SIW415	1-9/16" Sidewall with Base - Urethane	Sidewall
	SIW420	2" High Sidewall with Base - Urethane	Sidewall
	SIW430	3" High Sidewall with Base - Urethane	Sidewall
	SS1	S/S Staple Laced One End	Lacing
	SS2	S/S Staple Laced Both Ends	Lacing
	SSA1	S/S Alligator Laced One End	Lacing
	SSA2	S/S Alligator Laced Both Ends	Lacing
	SSC1	S/S Clipper Laced One End	Lacing
	SSC2	S/S Clipper Laced Both Ends	Lacing
	SSU1	S/S Unibar One End	Lacing
	SSU2	S/S Unibar Both Ends	Lacing
	TC05-3	1/2" Tee Cleat - PVC	Cleat
	TC1-3	1" Tee Cleat - PVC	Cleat
	TC105-3	1-1/2" Tee Cleat - PVC	Cleat
	TC2-3	2" Tee Cleat - PVC	Cleat
	TC205-3	2-1/2" Tee Cleat - PVC	Cleat
	TC3-3	3" Tee Cleat - PVC	Cleat
	TC4-3	4" Tee Cleat - PVC	Cleat
	TL05-3	1/2" Thin Line Cleat - PVC	Cleat
	TL1-3	1" Thin Line Cleat - PVC	Cleat
	TL105-3	1-1/2" Thin Line Cleat - PVC	Cleat
	TL2-3	2" Thin Line Cleat - PVC	Cleat
	TL205-3	2-1/2" Thin Line Cleat - PVC	Cleat
	WIW320	2" High White Weldwall	Sidewall
