Part #: 3-1203

Part Number: 3-1203

Description:

3 Ply Neoprene R/T

Color:

Brown

Plies:

Nominal OAG:

0.255

+/-

0.02

Recessed OAG:

0.11

Fabric:

Polyester

Top Surface:

Hemp Impression Rough Top

Bottom Surface:

Bare

Compound:

NBR

Work Tension:

150

Elongation:

Less than 2%

Weight:

0.11

Minimum Pulley Diameter:

Back Flex Min. Pulley Diameter:

4.5

Working Temperature:

0 to 250

Max. Stocked Width:

Top Cover Coefficient of Friction/Steel:

0.7

Bottom Cover Coefficient of Friction/Steel:

0.3

Attributes: Troughable, Sliderbed Suitable

1 of 3

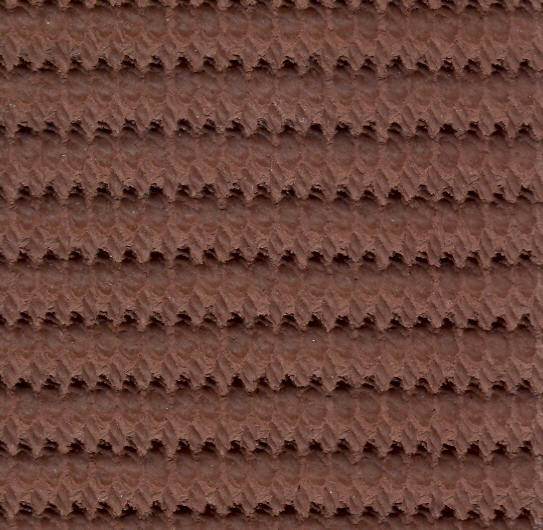

3-1203 Close Up

Features:

3-1203 provides excellent grip for standard incline conveyors. The Neoprene/NBR compound is both oil-resistant and non-marking, making it ideal where product appearance and cleanliness are critical.

This construction is widely used in corrugated box plants, bakeries, and other environments requiring a non-marking, oil-resistant rough-top surface. (Note: Rough-top must be recessed for use with lacing; use Recessed OAG.)

Image	Fabrication	Description	Fabrication Type
	AC-1	A Section Cleat - Nitrile	Cleat
	AC-7	A Section Cleat - MOR	Cleat
	BC-1	B Section Cleat - Nitrile	Cleat
	BC-7	B Section Cleat - MOR	Cleat
	BC2-2	2" Beefy Cleat - SBR	Cleat
	BV-1	B Section V-Guide - Nitrile	V-Guide
	BV-2	B Section V-Guide - SBR	V-Guide
	BV-4	B Section V-Guide - Urethane	V-Guide
	CC-1	C Section Cleat - Nitrile	Cleat
	CC-7	C Section Cleat - MOR	Cleat
	CFC2	Clipper Laced Both Ends – Cover Flap	Lacing
	CFS2	Staple Laced Both Ends – Cover Flap	Lacing
	CFSSC2	S/S Clipper Laced Both Ends – Cover Flap	Lacing
	CFSSU2	S/S Unibar Both Ends – Cover Flap	Lacing
	E-A	Endless - Lap Splice	Endless
No image	HLC2	Clipper Laced Both Ends – Hidden Lace	Lacing
No image	HLSSC2	S/S Clipper Laced Both Ends – Hidden Lace	Lacing
	HLSSU2	S/S Unibar Both Ends – Hidden Lace	Lacing
No image	HP	Hole Punch	Hole Punch
	LONG - LW	Longitudinal Splice - LW	Longitudinal
	LUG0505-7	1/2" x 1/2" Lug - MOR	Cleat
	OV-4	O Section V-Guide - Urethane	V-Guide
No image	PE-A	Prepared Ends - Lap Splice	Endless
	Perforation	Perforation	Hole Punch
No image	RA1	Alligator Laced One End – Recessed	Lacing
No image	RA2	Alligator Laced Both Ends – Recessed	Lacing
	RC1	Clipper Laced One End - Recessed	Lacing
	RC2	Clipper Laced Both Ends - Recessed	Lacing
No image	RCSU1	Coated Steel Unibar One End – Recessed	Lacing
No image	RCSU2	Coated Steel Unibar Both Ends – Recessed	Lacing
No image	RP2	Plastic Rivet Laced Both Ends - Recessed	Lacing
	RS1	Staple Laced One End – Recessed	Lacing
	RS2	Staple Laced Both Ends – Recessed	Lacing
No image	RSL2	Spiral Laced Both Ends - R	Lacing
	RSS1	S/S Staple Laced One End – Recessed	Lacing
No image	RSS2	S/S Staple Laced Both Ends – Recessed	Lacing
No image	RSSA1	S/S Alligator Laced One End – Recessed	Lacing
No image	RSSA2	S/S Alligator Laced Both Ends – Recessed	Lacing
	RSSC1	S/S Clipper Laced One End - Recessed	Lacing
	RSSC2	S/S Clipper Laced Both Ends - Recessed	Lacing
No image	RSSU1	S/S Unibar One End – Recessed	Lacing
No image	RSSU2	S/S Unibar Both Ends – Recessed	Lacing
	TC1-1	1" Tee Cleat - Nitrile	Cleat
	TC1-7	1" Tee Cleat - MOR	Cleat
	TC105-1	1-1/2" Tee Cleat - Nitrile	Cleat
	TC105-7	1-1/2" Tee Cleat - MOR	Cleat
	TC2-1	2" Tee Cleat - Nitrile	Cleat
	TC3-1	3" Tee Cleat - Nitrile	Cleat
	TC3-7	3" Tee Cleat - MOR	Cleat
