Part #: 3-1213

Part Number: 3-1213

Description:

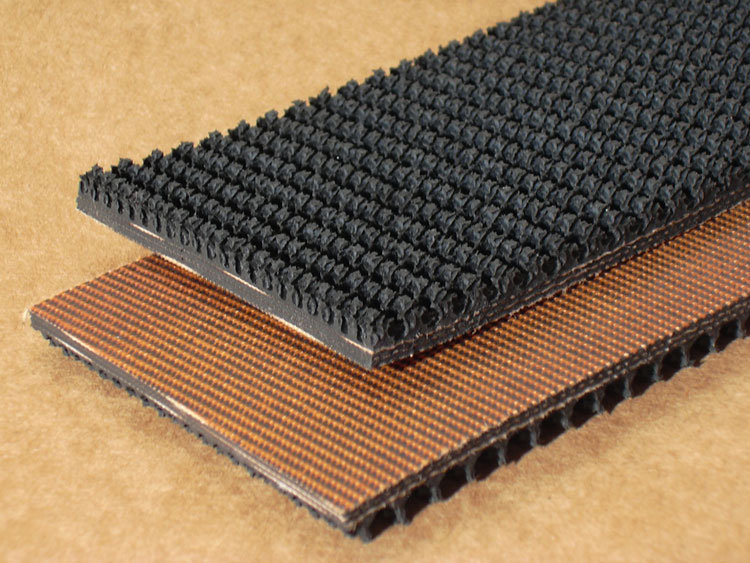

3 Ply MOR Rough Top

Color:

Black

Plies:

Nominal OAG:

0.3

+/-

0.03

Recessed OAG:

0.13

Fabric:

Cotton/Polyester

Top Surface:

Hemp Impression Rough Top

Bottom Surface:

Bare Surface

Compound:

MOR

Work Tension:

225

Elongation:

Less than 2%

Weight:

0.12

Minimum Pulley Diameter:

Back Flex Min. Pulley Diameter:

4.5

Working Temperature:

-20 to 250

Max. Stocked Width:

Top Cover Coefficient of Friction/Steel:

Bottom Cover Coefficient of Friction/Steel:

0.3

Attributes: Sliderbed Suitable, Troughable, Oil Resistant

1 of 3

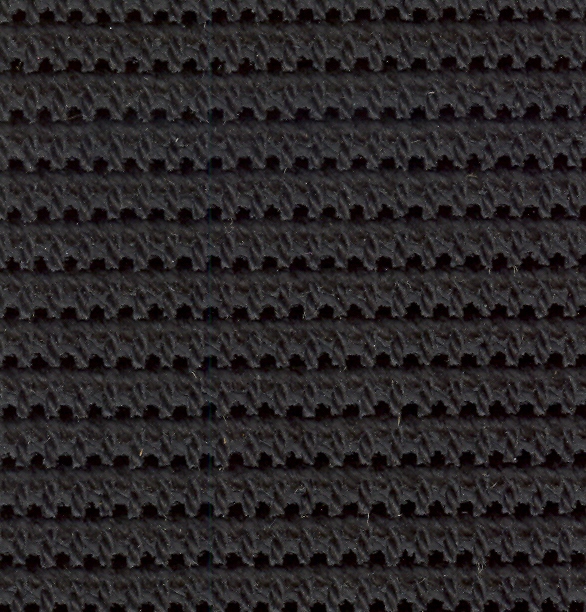

3-1213 Close Up

Features:

3-1213 offers excellent gripping for standard incline conveyors. The MOR compound ensures oil resistant. The Cotton/Polyester carcass gives a hefty appearance and a cushioning effect on the conveyed product. NOTE–The Rough Top must be recessed to use lacing. Use Recessed OAG for Lacing Recommendation. 3 Ply MOR Rough Top will handle most all products including boxed, bagged or packaged goods. The MOR is oil resistant.

Image	Fabrication	Description	Fabrication Type
	AC-7	A Section Cleat - MOR	Cleat
	BC-7	B Section Cleat - MOR	Cleat
	BC2-7	2" Beefy Cleat - MOR	Cleat
	CC-7	C Section Cleat - MOR	Cleat
	CFC2	Clipper Laced Both Ends – Cover Flap	Lacing
	E-A	Endless - Lap Splice	Endless
	FLG1-2	1" High Flange - SBR	Flange
No image	FP3NL	Flexco Plate Prepared (No Lacing Included)	Lacing
No image	HLC2	Clipper Laced Both Ends – Hidden Lace	Lacing
No image	HLS2	Staple Laced Both Ends – Hidden Lace	Lacing
No image	HLSSC2	S/S Clipper Laced Both Ends – Hidden Lace	Lacing
	HLSSU2	S/S Unibar Both Ends – Hidden Lace	Lacing
No image	HP	Hole Punch	Hole Punch
	LONG - LW	Longitudinal Splice - LW	Longitudinal
	LUG0505-7	1/2" x 1/2" Lug - MOR	Cleat
	LUG11-7	1" x 1" Lug - MOR	Cleat
	P2	Plastic Rivet Laced Both Ends	Lacing
No image	PE-A	Prepared Ends - Lap Splice	Endless
	Perforation	Perforation	Hole Punch
No image	RA1	Alligator Laced One End – Recessed	Lacing
No image	RA2	Alligator Laced Both Ends – Recessed	Lacing
	RC1	Clipper Laced One End - Recessed	Lacing
	RC2	Clipper Laced Both Ends - Recessed	Lacing
No image	RCSU1	Coated Steel Unibar One End – Recessed	Lacing
No image	RCSU2	Coated Steel Unibar Both Ends – Recessed	Lacing
No image	RFH1	Flexco Hinge Laced One End - Recessed	Lacing
No image	RFH2	Flexco Hinge Laced Both Ends - Recessed	Lacing
No image	RFR1	Flexco Rivet Laced One End - Recessed	Lacing
No image	RFR2	Flexco Rivet Laced Both Ends – Recessed	Lacing
No image	RP2	Plastic Rivet Laced Both Ends - Recessed	Lacing
	RS1	Staple Laced One End – Recessed	Lacing
	RS2	Staple Laced Both Ends – Recessed	Lacing
	RSS1	S/S Staple Laced One End – Recessed	Lacing
No image	RSS2	S/S Staple Laced Both Ends – Recessed	Lacing
No image	RSSA1	S/S Alligator Laced One End – Recessed	Lacing
No image	RSSA2	S/S Alligator Laced Both Ends – Recessed	Lacing
	RSSC1	S/S Clipper Laced One End - Recessed	Lacing
	RSSC2	S/S Clipper Laced Both Ends - Recessed	Lacing
No image	RSSU1	S/S Unibar One End – Recessed	Lacing
No image	RSSU2	S/S Unibar Both Ends – Recessed	Lacing
	SFH2	S/S Flexco Hinge Laced Both Ends	Lacing
	SIC405-7	4-1/2" SI Cleat - MOR	Cleat
	TC1-7	1" Tee Cleat - MOR	Cleat
	TC105-7	1-1/2" Tee Cleat - MOR	Cleat
