Part #: 3-1512

Part Number: 3-1512

Description:

B1200 PVC Rough Top

Color:

Black

Plies:

Nominal OAG:

0.23

+/-

0.02

Recessed OAG:

0.11

Fabric:

Polyester

Top Surface:

Hemp Impression Rough Top

Bottom Surface:

Brushed Surface

Compound:

PVC

Work Tension:

120

Elongation:

Less than 2%

Weight:

0.083

Minimum Pulley Diameter:

Back Flex Min. Pulley Diameter:

4.5

Working Temperature:

-10 to 180

Max. Stocked Width:

Top Cover Coefficient of Friction/Steel:

1.3

Bottom Cover Coefficient of Friction/Steel:

0.3

Attributes: Sliderbed Suitable

1 of 3

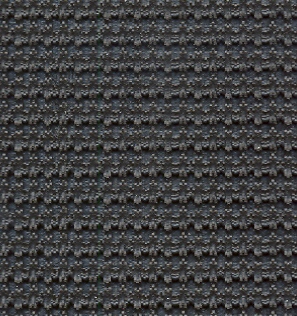

3-1512 Close Up

Features:

3-1512 features the popular interwoven carcass with a conventional hemp impression rough top. NOTE–Rough Top impression must be recessed to lace belt. Use Recessed OAG for Lacing Recommendation. B1200 PVC Rough Top can be used as a general purpose incline belt where the incline angle is moderate.

Image	Fabrication	Description	Fabrication Type
	AC-3	A Section Cleat - PVC	Cleat
	AV-3	A Section V-Guide - PVC	V-Guide
	AVN-3	A Section V-Guide Notched - PVC	V-Guide
	AVN-4	A Section V-Guide Notched - Urethane	V-Guide
	BC-3	B Section Cleat - PVC	Cleat
	BC2-3	2" Beefy Cleat - PVC	Cleat
	BV-3	B Section V-Guide - PVC	V-Guide
	BVN-3	B Section V-Guide Notched - PVC	V-Guide
	CV-3	C Section V-Guide - PVC	V-Guide
	CVN-3	C Section V-Guide Notched - PVC	V-Guide
	E-G	Endless - Finger Splice Interwoven 1	Endless
	FH2	Flexco Hinge Laced Both Ends	Lacing
	FLG05-3	1/2" x 1/2" High Flange - PVC	Flange
No image	HLC2	Clipper Laced Both Ends – Hidden Lace	Lacing
No image	HP	Hole Punch	Hole Punch
	K6V-3	K6 Section V-Guide - PVC	V-Guide
	K6VN-3	K6 Section V-Guide Notched - PVC	V-Guide
	K8V-3	K8 Section V-Guide - PVC	V-Guide
	K8VN-3	K8 Section V-Guide Notched - PVC	V-Guide
	LONG - IW	Longitudinal Splice - IW	Longitudinal
	LUG0505-3	1/2" x 1/2" Lug - PVC	Cleat
	LUG7575-3	3/4" x 3/4" Lug - PVC	Cleat
	OV-3	O Section V-Guide - PVC	V-Guide
	OVN-3	O Section V-Guide Notched - PVC	V-Guide
	P-1	2 Hole Bucket Punch (P-1)	Hole Punch
No image	PE-G	Prepared Ends – Interwoven Finger Splice 1	Endless
	Perforation	Perforation	Hole Punch
No image	RA1	Alligator Laced One End – Recessed	Lacing
No image	RA2	Alligator Laced Both Ends – Recessed	Lacing
	RC1	Clipper Laced One End - Recessed	Lacing
	RC2	Clipper Laced Both Ends - Recessed	Lacing
No image	RCSU1	Coated Steel Unibar One End – Recessed	Lacing
No image	RCSU2	Coated Steel Unibar Both Ends – Recessed	Lacing
No image	RFH1	Flexco Hinge Laced One End - Recessed	Lacing
No image	RFH2	Flexco Hinge Laced Both Ends - Recessed	Lacing
No image	RFR2	Flexco Rivet Laced Both Ends – Recessed	Lacing
No image	RMS2	Megalloy Staple Laced Both Ends – Recessed	Lacing
No image	RP1	Plastic Rivet Laced One End - Recessed	Lacing
No image	RP2	Plastic Rivet Laced Both Ends - Recessed	Lacing
	RS1	Staple Laced One End – Recessed	Lacing
	RS2	Staple Laced Both Ends – Recessed	Lacing
	RSS1	S/S Staple Laced One End – Recessed	Lacing
No image	RSS2	S/S Staple Laced Both Ends – Recessed	Lacing
No image	RSSA1	S/S Alligator Laced One End – Recessed	Lacing
No image	RSSA2	S/S Alligator Laced Both Ends – Recessed	Lacing
	RSSC1	S/S Clipper Laced One End - Recessed	Lacing
	RSSC2	S/S Clipper Laced Both Ends - Recessed	Lacing
No image	RSSU1	S/S Unibar One End – Recessed	Lacing
No image	RSSU2	S/S Unibar Both Ends – Recessed	Lacing
	SC2-3	2" Scoop Cleat - PVC	Cleat
	TC05-3	1/2" Tee Cleat - PVC	Cleat
	TC1-3	1" Tee Cleat - PVC	Cleat
	TC105-3	1-1/2" Tee Cleat - PVC	Cleat
	TC2-3	2" Tee Cleat - PVC	Cleat
	TC3-3	3" Tee Cleat - PVC	Cleat
	TC4-3	4" Tee Cleat - PVC	Cleat
