Part #: 3-1530

Part Number: 3-1530

Description:

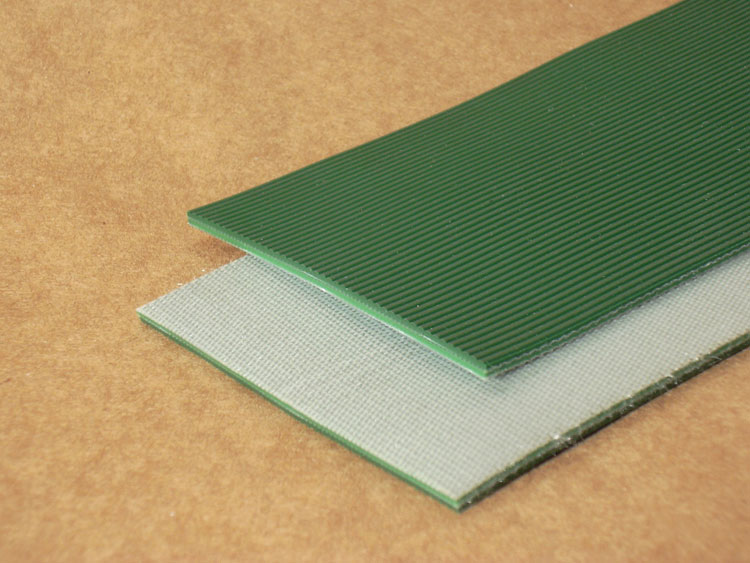

P2G Mono-Tote 8M/GP/BP

Color:

Green

Plies:

Nominal OAG:

0.11

+/-

0.015

Fabric:

Monofilament

Top Surface:

Longitudinal Groove

Bottom Surface:

Bare

Compound:

PVC

Work Tension:

100

Elongation:

Less than 1%

Weight:

0.053

Minimum Pulley Diameter:

1.5

Back Flex Min. Pulley Diameter:

2.25

Working Temperature:

20 to 180

Max. Stocked Width:

78.75

Attributes: Cross Rigid, Sliderbed Suitable

1 of 3

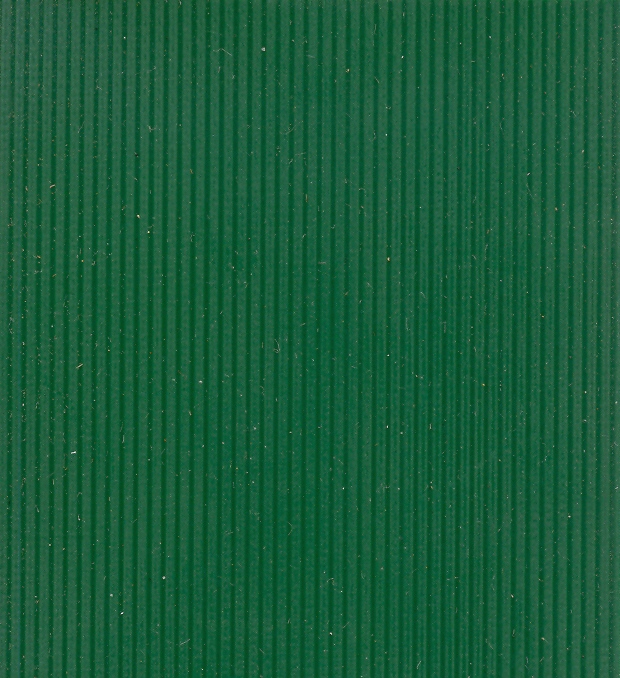

3-1530 Close Up

Features:

This belt features an exceptionally soft compound with molded grooves that self clean when going around pulleys. The monofilament carcass insures a flat performing belt. P2G Mono-Tote-G 8M/GP/BP has been a leader in the movement of totes and letters in the Post Office. It is also recommended to move any product where a sticky surface is needed. It can also be used on strapping machines.

Image	Fabrication	Description	Fabrication Type
	A1	Alligator Laced One End	Lacing
	A2	Alligator Laced Both Ends	Lacing
	AC-3	A Section Cleat - PVC	Cleat
	AV-3	A Section V-Guide - PVC	V-Guide
	AVN-3	A Section V-Guide Notched - PVC	V-Guide
	BV-3	B Section V-Guide - PVC	V-Guide
	BVN-3	B Section V-Guide Notched - PVC	V-Guide
	C1	Clipper Laced One End	Lacing
	C2	Clipper Laced Both Ends	Lacing
	CSU1	Coated Steel Unibar One End	Lacing
	CSU2	Coated Steel Unibar Both Ends	Lacing
	CV-3	C Section V-Guide - PVC	V-Guide
	CVN-3	C Section V-Guide Notched - PVC	V-Guide
	E-C	Endless – Finger Splice	Endless
No image	HP	Hole Punch	Hole Punch
	K6V-3	K6 Section V-Guide - PVC	V-Guide
	K6VN-3	K6 Section V-Guide Notched - PVC	V-Guide
	K8V-3	K8 Section V-Guide - PVC	V-Guide
	K8VN-3	K8 Section V-Guide Notched - PVC	V-Guide
	OC-3	O Section Cleat - PVC	Cleat
	OV-3	O Section V-Guide - PVC	V-Guide
	OVN-3	O Section V-Guide Notched - PVC	V-Guide
	P1	Plastic Rivet Laced One End	Lacing
	P2	Plastic Rivet Laced Both Ends	Lacing
No image	PE-E	Prepared Ends - Finger Splice	Endless
	Perforation	Perforation	Hole Punch
	RSSC1	S/S Clipper Laced One End - Recessed	Lacing
	RSSC2	S/S Clipper Laced Both Ends - Recessed	Lacing
	S1	Staple Laced One End	Lacing
	S2	Staple Laced Both Ends	Lacing
	SL2	Spiral Laced Both Ends	Lacing
	SS1	S/S Staple Laced One End	Lacing
	SS2	S/S Staple Laced Both Ends	Lacing
	SSA1	S/S Alligator Laced One End	Lacing
	SSA2	S/S Alligator Laced Both Ends	Lacing
	SSC1	S/S Clipper Laced One End	Lacing
	SSC2	S/S Clipper Laced Both Ends	Lacing
	SSU1	S/S Unibar One End	Lacing
	SSU2	S/S Unibar Both Ends	Lacing
