Part #: 3-3513

Part Number: 3-3513

Description:

W1200 Crescent Top – MOR

Color:

White

Plies:

Nominal OAG:

0.22

+/-

0.03

Recessed OAG:

0.14

Fabric:

Interwoven Polyester

Top Surface:

Crescent Impression

Bottom Surface:

Brushed

Compound:

RAV

Work Tension:

120

Elongation:

Less than 2%

Weight:

0.08

Minimum Pulley Diameter:

Back Flex Min. Pulley Diameter:

Working Temperature:

0 to 180

Max. Stocked Width:

Top Cover Coefficient of Friction/Steel:

1.3

Bottom Cover Coefficient of Friction/Steel:

0.8

Attributes: Oil Resistant, Sliderbed Suitable, Troughable

1 of 3


Features:

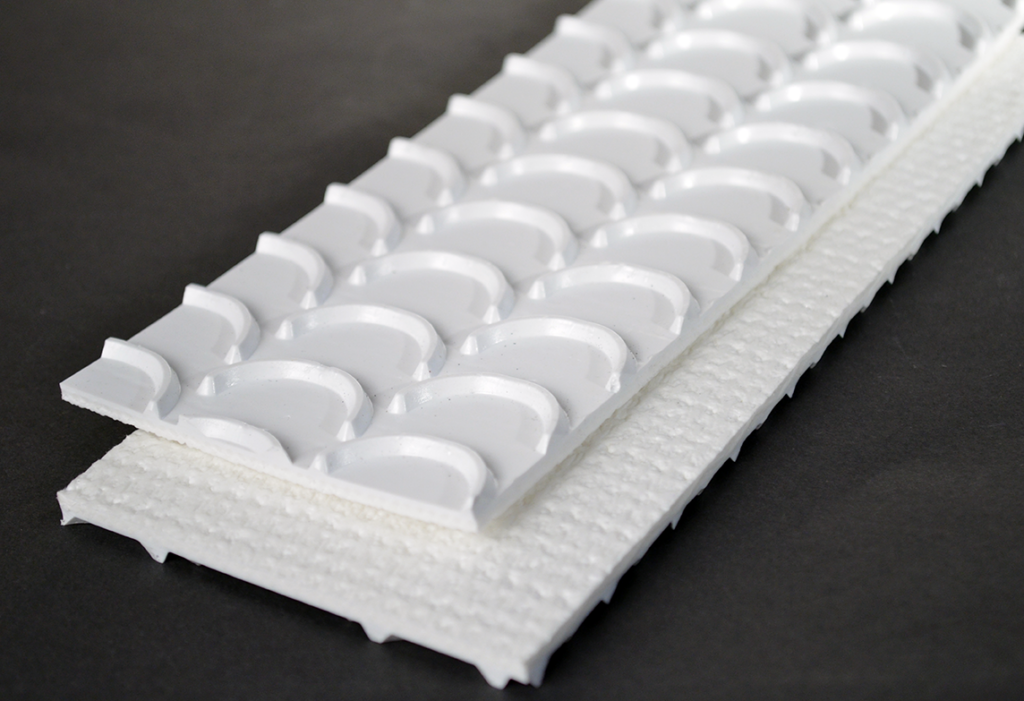

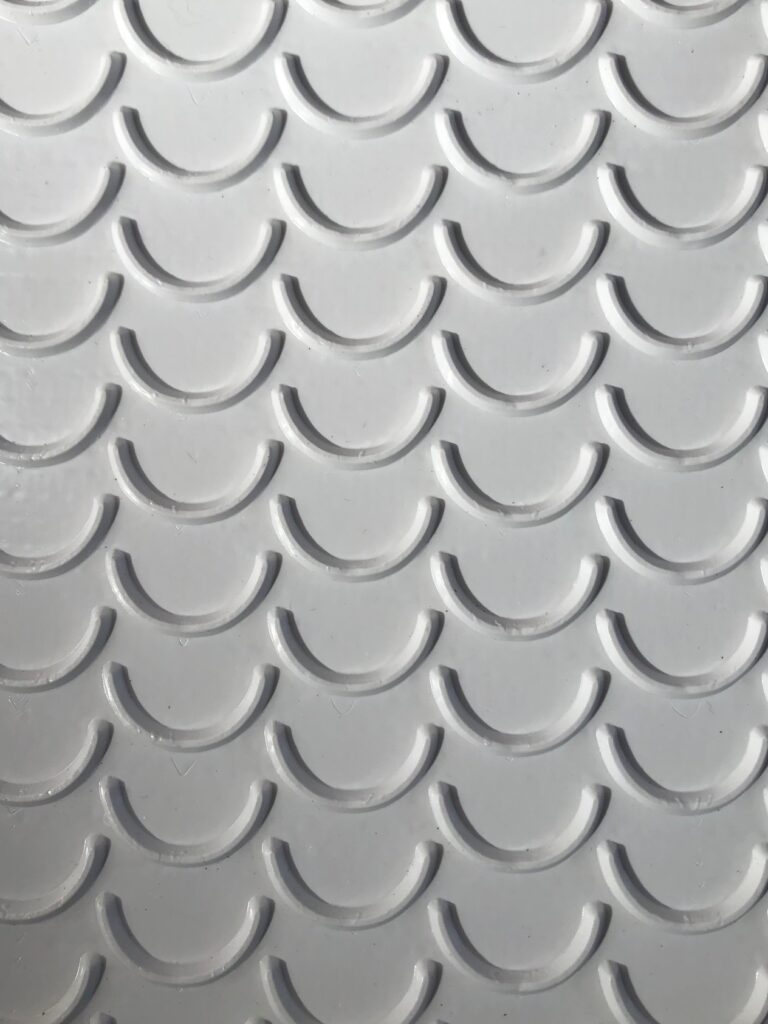

3-3513 features the popular interwoven carcass with an 1/8″ high half moon (crescent) impression. The belt has a brushed bottom for a low coefficient of friction. The PVC compound is oil resistant. NOTE–The crescent impression must be recessed to use lacing. Use Recessed OAG for Lacing Recommendation. W1200 Crescent Top is very popular in the agricultural industry for the movement of bulk materials and in the post office to move small packages.

Image	Fabrication	Description	Fabrication Type
	AV-3	A Section V-Guide - PVC	V-Guide
	AVN-3	A Section V-Guide Notched - PVC	V-Guide
	BV-3	B Section V-Guide - PVC	V-Guide
	BVN-3	B Section V-Guide Notched - PVC	V-Guide
No image	CFRP2	Plastic Rivet Laced Both Ends – Cover Flap	Lacing
	CV-3	C Section V-Guide - PVC	V-Guide
	CVN-3	C Section V-Guide Notched - PVC	V-Guide
	E-G	Endless - Finger Splice Interwoven 1	Endless
	FLG1DS-3	1" High Flange Drilled and Siped - PVC	Flange
No image	HP	Hole Punch	Hole Punch
	K6V-3	K6 Section V-Guide - PVC	V-Guide
	K6VN-3	K6 Section V-Guide Notched - PVC	V-Guide
	K8V-3	K8 Section V-Guide - PVC	V-Guide
	K8VN-3	K8 Section V-Guide Notched - PVC	V-Guide
	LONG - IW	Longitudinal Splice - IW	Longitudinal
	OV-3	O Section V-Guide - PVC	V-Guide
	OVN-3	O Section V-Guide Notched - PVC	V-Guide
	P1	Plastic Rivet Laced One End	Lacing
	P2	Plastic Rivet Laced Both Ends	Lacing
No image	PE-G	Prepared Ends – Interwoven Finger Splice 1	Endless
	Perforation	Perforation	Hole Punch
No image	RA1	Alligator Laced One End – Recessed	Lacing
No image	RA2	Alligator Laced Both Ends – Recessed	Lacing
	RC1	Clipper Laced One End - Recessed	Lacing
	RC2	Clipper Laced Both Ends - Recessed	Lacing
No image	RFH1	Flexco Hinge Laced One End - Recessed	Lacing
No image	RFH2	Flexco Hinge Laced Both Ends - Recessed	Lacing
No image	RMS1	Megalloy Staple Laced One End – Recessed	Lacing
No image	RMS2	Megalloy Staple Laced Both Ends – Recessed	Lacing
No image	RP1	Plastic Rivet Laced One End - Recessed	Lacing
No image	RP2	Plastic Rivet Laced Both Ends - Recessed	Lacing
	RS1	Staple Laced One End – Recessed	Lacing
	RS2	Staple Laced Both Ends – Recessed	Lacing
	RSS1	S/S Staple Laced One End – Recessed	Lacing
No image	RSS2	S/S Staple Laced Both Ends – Recessed	Lacing
No image	RSSA1	S/S Alligator Laced One End – Recessed	Lacing
No image	RSSA2	S/S Alligator Laced Both Ends – Recessed	Lacing
	RSSC1	S/S Clipper Laced One End - Recessed	Lacing
	RSSC2	S/S Clipper Laced Both Ends - Recessed	Lacing
No image	RSSU1	S/S Unibar One End – Recessed	Lacing
No image	RSSU2	S/S Unibar Both Ends – Recessed	Lacing
	TC1-3	1" Tee Cleat - PVC	Cleat
	TC2-3	2" Tee Cleat - PVC	Cleat
	WIB310	1" High Black Weldwall	Sidewall
