Part #: 3-3612

Part Number: 3-3612

Description:

B1200 Chevron Top

Color:

Black

Plies:

Nominal OAG:

0.24

+/-

0.02

Recessed OAG:

0.14

Fabric:

Interwoven Polyester

Top Surface:

Chevron Impression

Bottom Surface:

Brushed

Compound:

PVC

Work Tension:

120

Elongation:

Less than 2%

Weight:

0.085

Minimum Pulley Diameter:

Back Flex Min. Pulley Diameter:

Working Temperature:

20 to 180

Max. Stocked Width:

Top Cover Coefficient of Friction/Steel:

1.1

Bottom Cover Coefficient of Friction/Steel:

0.8

Attributes: Troughable, Sliderbed Suitable

1 of 3

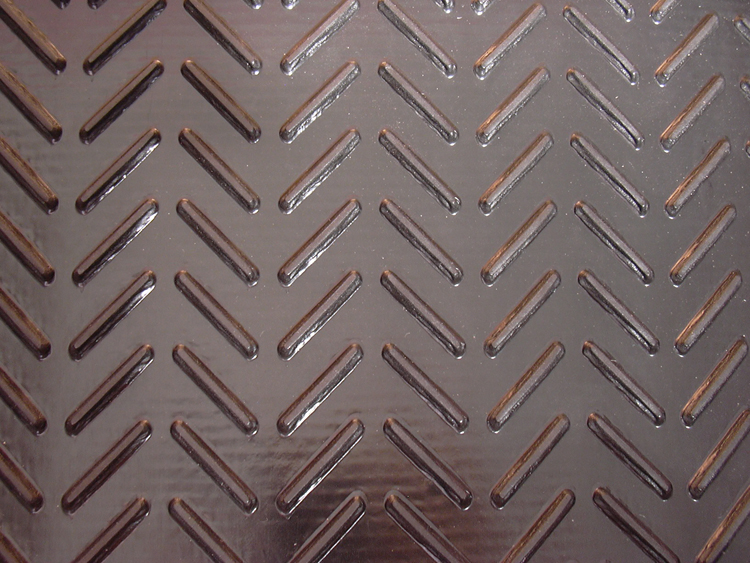

3-3612 Close Up

Features:

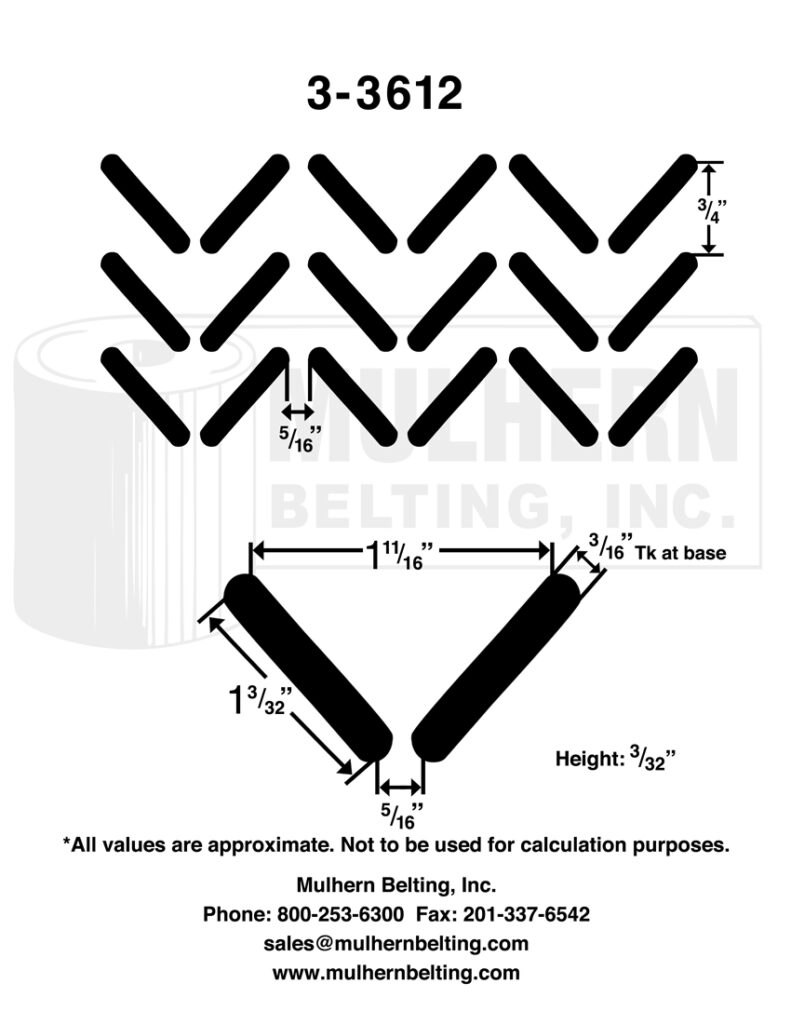

3-3612 features a durable interwoven carcass paired with a 1/8″ high chevron impression designed to provide positive product control on inclines. The chevron pattern helps stabilize bulk materials, reducing rollback and improving throughput on moderate incline applications.

The brushed bottom surface delivers a low coefficient of friction for smooth operation on slider beds, while the PVC compound provides oil resistance for environments where materials may contain light oils or moisture.

This belt construction is widely used in agricultural bulk handling, including grain, feed, and seed movement, as well as general industrial applications requiring controlled conveying of loose or irregular materials.

(Note: Chevron impressions must be recessed for mechanical lacing. Recessed OAG includes the profile and is required for proper installation.)
