Part #: 3-4102

Part Number: 3-4102

Description:

2 Ply Black Diamond Top

Color:

Black

Plies:

Nominal OAG:

0.33

+/-

0.02

Recessed OAG:

0.15

Fabric:

Polyester

Top Surface:

Diamond Top Impression

Bottom Surface:

Bare

Compound:

SBR

Work Tension:

120

Elongation:

Less than 3%

Weight:

0.093

Minimum Pulley Diameter:

2.5

Back Flex Min. Pulley Diameter:

3.75

Working Temperature:

-20 to 250

Max. Stocked Width:

Hardness:

45a

Top Cover Coefficient of Friction/Steel:

1.9

Bottom Cover Coefficient of Friction/Steel:

0.3

Attributes: Sliderbed Suitable

1 of 3

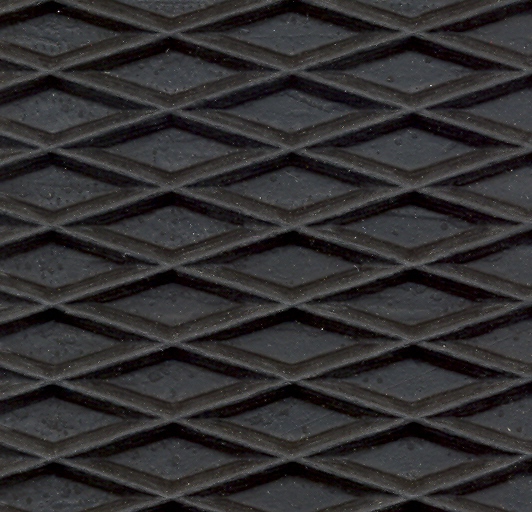

3-4102 Close Up

Features:

3-4102 is engineered for the steepest incline applications where maximum gripping capability is required. The diamond-patterned top cover provides an exceptionally high coefficient of friction, allowing conveyed product to remain stable and secure even on aggressive incline angles.

The 2-ply construction delivers a strong, durable, and flexible belt suitable for continuous-duty environments. Its high-friction diamond impression makes this belt particularly effective for boxed, bagged, and packaged goods, where product stability and gentle handling are critical.

This belt is widely used in airline baggage systems, parcel distribution centers, and postal applications, where reliable incline performance and consistent product movement are essential.

(Note: Rough-top/diamond impressions must be recessed for mechanical lacing. Use Recessed OAG for proper installation and splice performance.)

Image	Fabrication	Description	Fabrication Type
	BC2-2	2" Beefy Cleat - SBR	Cleat
	BVN-2	B Section V-Guide Notched - SBR	V-Guide
	CFC2	Clipper Laced Both Ends – Cover Flap	Lacing
	CFCSU2	Coated Steel Unibar Both Ends – Cover Flap	Lacing
	CFSSA2	S/S Alligator Laced Both Ends – Cover Flap	Lacing
	CFSSC2	S/S Clipper Laced Both Ends – Cover Flap	Lacing
	CFSSU2	S/S Unibar Both Ends – Cover Flap	Lacing
	E-A	Endless - Lap Splice	Endless
No image	HLC2	Clipper Laced Both Ends – Hidden Lace	Lacing
	HLCSU2	Coated Steel Unibar Both Ends – Hidden Lace	Lacing
No image	HP	Hole Punch	Hole Punch
	LONG - LW	Longitudinal Splice - LW	Longitudinal
	LUG0505-2	1/2" x 1/2" Lug - SBR	Cleat
	LUG11-2	1" x 1" Lug - SBR	Cleat
No image	PE-A	Prepared Ends - Lap Splice	Endless
	Perforation	Perforation	Hole Punch
No image	RA1	Alligator Laced One End – Recessed	Lacing
No image	RA2	Alligator Laced Both Ends – Recessed	Lacing
	RC1	Clipper Laced One End - Recessed	Lacing
	RC2	Clipper Laced Both Ends - Recessed	Lacing
No image	RCSU1	Coated Steel Unibar One End – Recessed	Lacing
No image	RCSU2	Coated Steel Unibar Both Ends – Recessed	Lacing
No image	RFH1	Flexco Hinge Laced One End - Recessed	Lacing
No image	RFH2	Flexco Hinge Laced Both Ends - Recessed	Lacing
No image	RFR2	Flexco Rivet Laced Both Ends – Recessed	Lacing
No image	RMS1	Megalloy Staple Laced One End – Recessed	Lacing
No image	RMS2	Megalloy Staple Laced Both Ends – Recessed	Lacing
No image	RP1	Plastic Rivet Laced One End - Recessed	Lacing
No image	RP2	Plastic Rivet Laced Both Ends - Recessed	Lacing
	RS1	Staple Laced One End – Recessed	Lacing
	RS2	Staple Laced Both Ends – Recessed	Lacing
No image	RSFR1	S/S Flexco Rivet Laced One End – Recessed	Lacing
No image	RSFR2	S/S Flexco Rivet Laced Both Ends – Recessed	Lacing
No image	RSL2	Spiral Laced Both Ends - R	Lacing
	RSS1	S/S Staple Laced One End – Recessed	Lacing
No image	RSS2	S/S Staple Laced Both Ends – Recessed	Lacing
No image	RSSA1	S/S Alligator Laced One End – Recessed	Lacing
No image	RSSA2	S/S Alligator Laced Both Ends – Recessed	Lacing
	RSSC1	S/S Clipper Laced One End - Recessed	Lacing
	RSSC2	S/S Clipper Laced Both Ends - Recessed	Lacing
No image	RSSU1	S/S Unibar One End – Recessed	Lacing
No image	RSSU2	S/S Unibar Both Ends – Recessed	Lacing
	SI220	2" High Sidewall - SBR	Sidewall
	TC105-2	1-1/2" Tee Cleat - SBR	Cleat
	TC2-2	2" Tee Cleat - SBR	Cleat
