Part #: 4-1501

Part Number: 4-1501

Description:

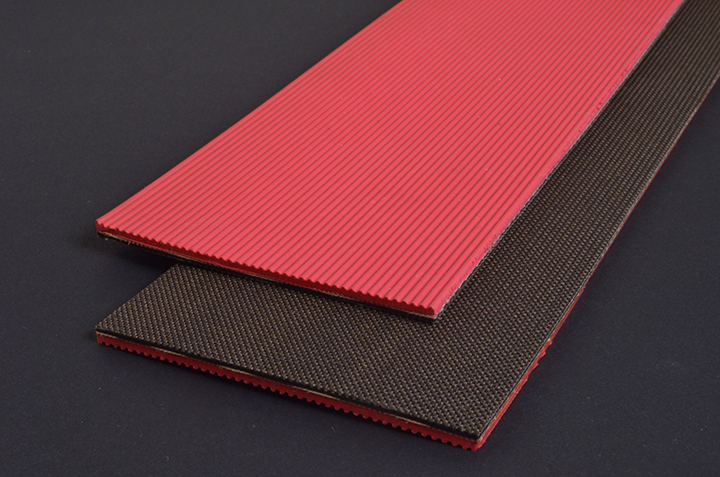

R2R Mono-Tote

Color:

Red

Plies:

Nominal OAG:

0.125

+/-

0.013

Fabric:

Monofilament/Polyester

Top Surface:

Longitudinal Groove

Bottom Surface:

Bare

Compound:

Work Tension:

105

Elongation:

Less than 2%

Weight:

0.057

Minimum Pulley Diameter:

1.5

Back Flex Min. Pulley Diameter:

2.25

Working Temperature:

-40 to 250

Max. Stocked Width:

Attributes: Sliderbed Suitable

1 of 1


Features:

4-1501 is the king of the incline. This soft, natural rubber, longitudinal groove belt is as grippy as they come. With a top cover coefficient of friction of 2.6, 4-1501 can tackle the steepest inclines. R2R Mono-Tote is perfect for the incline conveying of totes, boxes and anything else with a large, flat surface area.

Image	Fabrication	Description	Fabrication Type
	A1	Alligator Laced One End	Lacing
	A2	Alligator Laced Both Ends	Lacing
	C1	Clipper Laced One End	Lacing
	C2	Clipper Laced Both Ends	Lacing
	E-A	Endless - Lap Splice	Endless
No image	HP	Hole Punch	Hole Punch
	LONG - LW	Longitudinal Splice - LW	Longitudinal
No image	PE-A	Prepared Ends - Lap Splice	Endless
	Perforation	Perforation	Hole Punch
No image	RA1	Alligator Laced One End – Recessed	Lacing
No image	RA2	Alligator Laced Both Ends – Recessed	Lacing
	RC1	Clipper Laced One End - Recessed	Lacing
	RC2	Clipper Laced Both Ends - Recessed	Lacing
No image	RP2	Plastic Rivet Laced Both Ends - Recessed	Lacing
	RS1	Staple Laced One End – Recessed	Lacing
	RS2	Staple Laced Both Ends – Recessed	Lacing
	RSS1	S/S Staple Laced One End – Recessed	Lacing
No image	RSS2	S/S Staple Laced Both Ends – Recessed	Lacing
No image	RSSA1	S/S Alligator Laced One End – Recessed	Lacing
No image	RSSA2	S/S Alligator Laced Both Ends – Recessed	Lacing
	RSSC1	S/S Clipper Laced One End - Recessed	Lacing
	RSSC2	S/S Clipper Laced Both Ends - Recessed	Lacing
No image	RSSU1	S/S Unibar One End – Recessed	Lacing
No image	RSSU2	S/S Unibar Both Ends – Recessed	Lacing
	S1	Staple Laced One End	Lacing
	S2	Staple Laced Both Ends	Lacing
	SL2	Spiral Laced Both Ends	Lacing
	SS1	S/S Staple Laced One End	Lacing
	SS2	S/S Staple Laced Both Ends	Lacing
	SSA1	S/S Alligator Laced One End	Lacing
	SSA2	S/S Alligator Laced Both Ends	Lacing
	SSC1	S/S Clipper Laced One End	Lacing
	SSC2	S/S Clipper Laced Both Ends	Lacing
	SSU1	S/S Unibar One End	Lacing
	SSU2	S/S Unibar Both Ends	Lacing
