Part #: 4-3005

Part Number: 4-3005

Description:

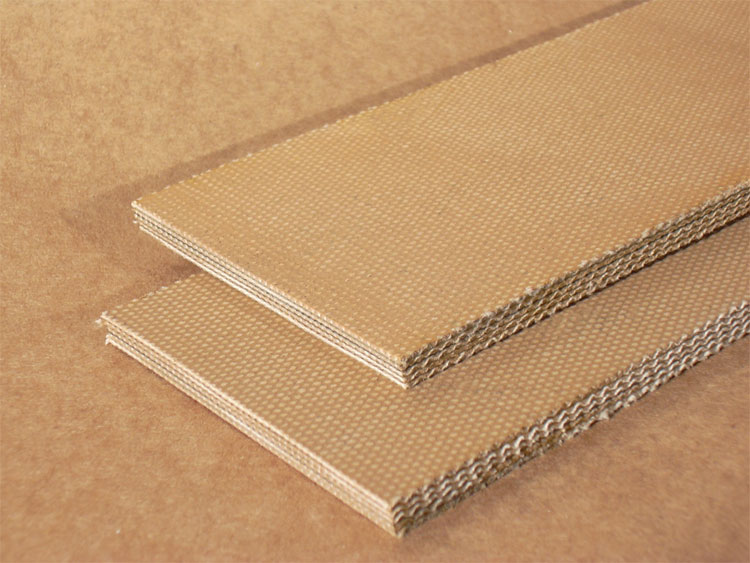

5 Ply Tan Transmission HD

Color:

Tan

Plies:

Nominal OAG:

0.27

+/-

0.02

Fabric:

Cotton

Top Surface:

Friction Surface

Bottom Surface:

Friction Surface

Compound:

SBR

Work Tension:

175

Elongation:

Less than 2%

Weight:

0.131

Minimum Pulley Diameter:

Back Flex Min. Pulley Diameter:

Working Temperature:

-40 to 250

Max. Stocked Width:

1 of 1


Features:

4-3005 features 5 plies of cotton with heavy SBR skims and a tan cover engineered for non-marking performance and high strength. The added plies deliver extra rigidity and resistance to stretch.

The belt handles heavier loads and higher tensions while maintaining stable tracking and long service life.

5 Ply Tan Transmission HD is preferred in demanding feed and grain service, light-duty elevator legs, and heavy power-transmission drives where durability is critical.

Image	Fabrication	Description	Fabrication Type
	A1	Alligator Laced One End	Lacing
	A2	Alligator Laced Both Ends	Lacing
	AV-2	A Section V-Guide - SBR	V-Guide
	C2	Clipper Laced Both Ends	Lacing
	CFC2	Clipper Laced Both Ends – Cover Flap	Lacing
	CSU2	Coated Steel Unibar Both Ends	Lacing
	E-A	Endless - Lap Splice	Endless
	FH2	Flexco Hinge Laced Both Ends	Lacing
No image	MS1	Megalloy Staple Laced One End	Lacing
No image	MS2	Megalloy Staple Laced Both Ends	Lacing
	P-1	2 Hole Bucket Punch (P-1)	Hole Punch
	P-2	3 Hole Bucket Punch (P-2)	Hole Punch
	P-3	4 Hole Bucket Punch (P-3)	Hole Punch
	P-4	5 Hole Bucket Punch (P-4)	Hole Punch
	P-5	6 Hole Bucket Punch (P-5)	Hole Punch
	P-7	5 Hole Bucket Punch (P-7)	Hole Punch
	P-8	7 Hole Bucket Punch (P-8)	Hole Punch
	P-9	9 Hole Bucket Punch (P-9)	Hole Punch
No image	PE-A	Prepared Ends - Lap Splice	Endless
	RSSC2	S/S Clipper Laced Both Ends - Recessed	Lacing
	S1	Staple Laced One End	Lacing
	S2	Staple Laced Both Ends	Lacing
	SS1	S/S Staple Laced One End	Lacing
	SS2	S/S Staple Laced Both Ends	Lacing
	SSA1	S/S Alligator Laced One End	Lacing
	SSA2	S/S Alligator Laced Both Ends	Lacing
	SSC2	S/S Clipper Laced Both Ends	Lacing
	SSU2	S/S Unibar Both Ends	Lacing
