Part #: 4-4003

Part Number: 4-4003

Description:

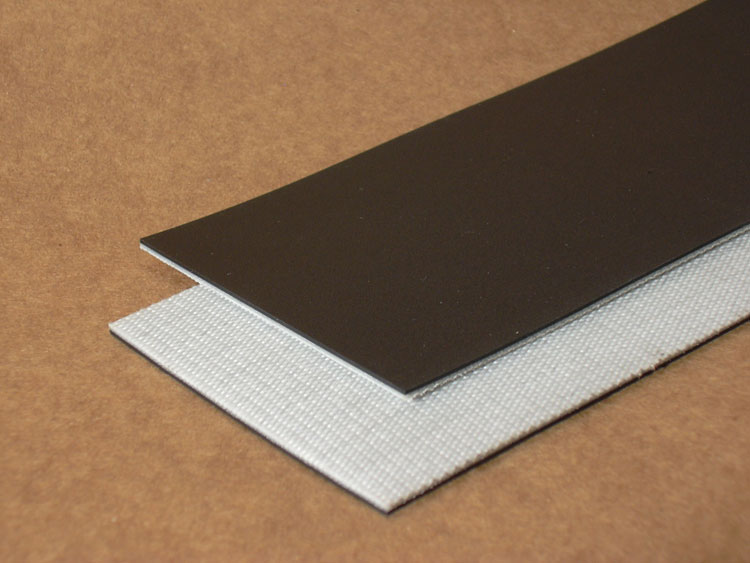

P2B Mono-Glide 8M/5P/BP

Color:

Black

Plies:

Nominal OAG:

0.075

+/-

0.015

Fabric:

Polyester x Monofilament

Top Surface:

Smooth Cover (Dull Finish)

Bottom Surface:

Bare

Compound:

PVC

Work Tension:

Elongation:

Less than 1%

Weight:

0.04

Minimum Pulley Diameter:

Back Flex Min. Pulley Diameter:

1.5

Working Temperature:

20 to 180

Max. Stocked Width:

118.11

Attributes: Sliderbed Suitable, Anti-Static, Cross Rigid, Low Noise

1 of 1


Features:

This belt features a ply of monofilament and a balancing ply. This combination results in a non-curling, stable, positive tracking belt. This belt is also anti-static. P2B Mono-Glide 8M/5P/BP is the most popular checkout counter belt. It is also popular with the conveying of small parts, treadmills and packaging machines.

Image	Fabrication	Description	Fabrication Type
	A1	Alligator Laced One End	Lacing
	A2	Alligator Laced Both Ends	Lacing
	AC-3	A Section Cleat - PVC	Cleat
	AV-3	A Section V-Guide - PVC	V-Guide
	AVN-3	A Section V-Guide Notched - PVC	V-Guide
	BC-3	B Section Cleat - PVC	Cleat
	BC2-3	2" Beefy Cleat - PVC	Cleat
	BV-3	B Section V-Guide - PVC	V-Guide
	BV-4	B Section V-Guide - Urethane	V-Guide
	BVN-3	B Section V-Guide Notched - PVC	V-Guide
	C1	Clipper Laced One End	Lacing
	C2	Clipper Laced Both Ends	Lacing
	CC-3	C Section Cleat - PVC	Cleat
	CSU2	Coated Steel Unibar Both Ends	Lacing
	CV-3	C Section V-Guide - PVC	V-Guide
	CVN-3	C Section V-Guide Notched - PVC	V-Guide
	E-E	Endless- Finger Splice	Endless
	FLG05-3	1/2" x 1/2" High Flange - PVC	Flange
	FLG1-3	1" High Flange - PVC	Flange
	FLG105-3	1-1/2" High Flange - PVC	Flange
	FLG105DS-3	1-1/2" High Flange Drilled and Siped - PVC	Flange
	FLG105N-3	1-1/2" High Flange Notched - PVC	Flange
	FLG1DS-3	1" High Flange Drilled and Siped - PVC	Flange
	FLG1DS-6	1" High Flange Drilled and Siped - RAV	Flange
No image	FSL2	Finger Spiral Laced Both Ends	Lacing
No image	HLC2	Clipper Laced Both Ends – Hidden Lace	Lacing
No image	HP	Hole Punch	Hole Punch
	K6V-3	K6 Section V-Guide - PVC	V-Guide
	K6VN-3	K6 Section V-Guide Notched - PVC	V-Guide
	K8V-3	K8 Section V-Guide - PVC	V-Guide
	K8VN-3	K8 Section V-Guide Notched - PVC	V-Guide
	LONG - LW	Longitudinal Splice - LW	Longitudinal
	LUG0505-3	1/2" x 1/2" Lug - PVC	Cleat
	LUG7575-3	3/4" x 3/4" Lug - PVC	Cleat
	OC-3	O Section Cleat - PVC	Cleat
	OV-3	O Section V-Guide - PVC	V-Guide
	OVN-3	O Section V-Guide Notched - PVC	V-Guide
	P-1	2 Hole Bucket Punch (P-1)	Hole Punch
	P-2	3 Hole Bucket Punch (P-2)	Hole Punch
	P-3	4 Hole Bucket Punch (P-3)	Hole Punch
	P-4	5 Hole Bucket Punch (P-4)	Hole Punch
	P-5	6 Hole Bucket Punch (P-5)	Hole Punch
	P2	Plastic Rivet Laced Both Ends	Lacing
No image	PE-A	Prepared Ends - Lap Splice	Endless
No image	PE-E	Prepared Ends - Finger Splice	Endless
	Perforation	Perforation	Hole Punch
No image	RSS2	S/S Staple Laced Both Ends – Recessed	Lacing
No image	RSSU2	S/S Unibar Both Ends – Recessed	Lacing
	S1	Staple Laced One End	Lacing
	S2	Staple Laced Both Ends	Lacing
	SC105-3	1-1/2" Scoop Cleat - PVC	Cleat
	SC2-3	2" Scoop Cleat - PVC	Cleat
	SC205-3	2-1/2" Scoop Cleat - PVC	Cleat
	SC3-3	3" Scoop Cleat - PVC	Cleat
	SIW410	1-3/16" Sidewall with Base - Urethane	Sidewall
	SIW415	1-9/16" Sidewall with Base - Urethane	Sidewall
	SL2	Spiral Laced Both Ends	Lacing
	SS1	S/S Staple Laced One End	Lacing
	SS2	S/S Staple Laced Both Ends	Lacing
	SSA1	S/S Alligator Laced One End	Lacing
	SSA2	S/S Alligator Laced Both Ends	Lacing
	SSC1	S/S Clipper Laced One End	Lacing
	SSC2	S/S Clipper Laced Both Ends	Lacing
	SSU1	S/S Unibar One End	Lacing
	SSU2	S/S Unibar Both Ends	Lacing
	TC05-3	1/2" Tee Cleat - PVC	Cleat
	TC1-3	1" Tee Cleat - PVC	Cleat
	TC105-3	1-1/2" Tee Cleat - PVC	Cleat
	TC2-3	2" Tee Cleat - PVC	Cleat
	TC205-3	2-1/2" Tee Cleat - PVC	Cleat
	TC3-3	3" Tee Cleat - PVC	Cleat
	TC4-3	4" Tee Cleat - PVC	Cleat
	TL05-3	1/2" Thin Line Cleat - PVC	Cleat
	TL1-3	1" Thin Line Cleat - PVC	Cleat
	TL105-3	1-1/2" Thin Line Cleat - PVC	Cleat
	TL2-3	2" Thin Line Cleat - PVC	Cleat
	TL205-3	2-1/2" Thin Line Cleat - PVC	Cleat
	WIB310	1" High Black Weldwall	Sidewall
	WIB315	1-1/2" High Black Weldwall	Sidewall
	WIB320	2" High Black Weldwall	Sidewall
	WIB325	2-1/2" High Black Weldwall	Sidewall
	WIB330	3" High Black Weldwall	Sidewall
	WIW310	1" High White Weldwall	Sidewall
	WIW315	1-1/2" High White Weldwall	Sidewall
	WIW320	2" High White Weldwall	Sidewall
	WIW325	2-1/2" High White Weldwall	Sidewall
	WIW330	3" High White Weldwall	Sidewall
