Part #: 5-1502

Part Number: 5-1502

Description:

2 Ply 150 1/8 X Bare MOR

Color:

Black

Plies:

2

Nominal OAG:

0.22

 +/-

0.03
Fabric:
Polyester/Nylon

Top Surface:

Smooth Cover
Top Cover Thickness:
0.125

Bottom Surface:

Bare
Compound:
MOR
Work Tension:
150

Elongation:

Less than 3%

Weight:

0.11

Minimum Pulley Diameter:

6

Back Flex Min. Pulley Diameter:

9

Working Temperature:

-20 to 225

Max. Stocked Width:

84

Hardness:

65a
Attributes: Sliderbed Suitable, Troughable
1 of 4
5-1502 Close Up

Related Documents

Related Documents

Features:

5-1502 features a medium duty, abrasion resistant top cover on a bare bottom cover. This belt can be used on a slider bed and is moderately oil resistant. 150 1/8 x Bare MOR can be used in any application requiring a medium duty belt on a slider bed. It is an excellent belt for recycling applications, the glass industry and processing wood chips, paper and scrap.

Fabrications for Belt Specification

Image Fabrication Description Fabrication Type
Fabrication 45CHEV05-7
45CHEV05-7 45 Degree Chevron - 1/2" x 1/2" Lug - MOR Chevron
Fabrication 90CHEV05-7
90CHEV05-7 90 Degree Chevron - 1/2" x 1/2" Lug - MOR Chevron
Fabrication 90CHEV1-7
90CHEV1-7 90 Degree Chevron - 1" x 1" Lug - MOR Chevron
Fabrication A1
A1 Alligator Laced One End Lacing
Fabrication A2
A2 Alligator Laced Both Ends Lacing
Fabrication AC-7
AC-7 A Section Cleat - MOR Cleat
Fabrication AV-7
AV-7 A Section V-Guide - MOR V-Guide
Fabrication AVN-7
AVN-7 A Section V-Guide Notched - MOR V-Guide
Fabrication BC-7
BC-7 B Section Cleat - MOR Cleat
Fabrication BC1-7
BC1-7 1" Beefy Cleat - MOR Cleat
Fabrication BC2-7
BC2-7 2" Beefy Cleat - MOR Cleat
Fabrication BC3-7
BC3-7 3" Beefy Cleat - MOR Cleat
Fabrication BC4-7
BC4-7 4" Beefy Cleat - MOR Cleat
Fabrication BV-7
BV-7 B Section V-Guide - MOR V-Guide
Fabrication BVN-7
BVN-7 B Section V-Guide Notched - MOR V-Guide
Fabrication C1
C1 Clipper Laced One End Lacing
Fabrication C2
C2 Clipper Laced Both Ends Lacing
Fabrication CC-7
CC-7 C Section Cleat - MOR Cleat
Fabrication CFA2
CFA2 Alligator Laced Both Ends – Cover Flap Lacing
Fabrication CFC2
CFC2 Clipper Laced Both Ends – Cover Flap Lacing
Fabrication CFS2
CFS2 Staple Laced Both Ends – Cover Flap Lacing
Fabrication CFSS2
CFSS2 S/S Staple Laced Both Ends – Cover Flap Lacing
Fabrication CFSSC2
CFSSC2 S/S Clipper Laced Both Ends – Cover Flap Lacing
Fabrication CSU1
CSU1 Coated Steel Unibar One End Lacing
Fabrication CSU2
CSU2 Coated Steel Unibar Both Ends Lacing
Fabrication CV-7
CV-7 C Section V-Guide - MOR V-Guide
Fabrication CVN-7
CVN-7 C Section V-Guide Notched - MOR V-Guide
Fabrication DV-7
DV-7 D Section V-Guide - MOR V-Guide
Fabrication DVN-7
DVN-7 D Section V-Guide Notched - MOR V-Guide
Fabrication E-B
E-B Endless - 2 Ply Lap Endless
Fabrication FH1
FH1 Flexco Hinge Laced One End Lacing
Fabrication FH2
FH2 Flexco Hinge Laced Both Ends Lacing
Fabrication FLG05-7
FLG05-7 1/2" High Flange - MOR Flange
Fabrication FLG05S-7
FLG05S-7 1/2" High Siped Flange - MOR Flange
Fabrication FLG1-7
FLG1-7 1" High Flange - MOR Flange
Fabrication FLG105-7
FLG105-7 1-1/2" High Flange - MOR Flange
Fabrication FLG105S-2
FLG105S-2 1-1/2" High Siped Flange - SBR Flange
Fabrication FLG105S-7
FLG105S-7 1-1/2" High Siped Flange - MOR Flange
Fabrication FLG1S-7
FLG1S-7 1" High Siped Flange - MOR Flange
No image FP3 Flexco Plate Prepared (Lacing Included) Lacing
No image FP3NL Flexco Plate Prepared (No Lacing Included) Lacing
No image FR1 Flexco Rivet Laced One End Lacing
No image FR2 Flexco Rivet Laced Both Ends Lacing
No image HLC2 Clipper Laced Both Ends – Hidden Lace Lacing
Fabrication HLCSU2
HLCSU2 Coated Steel Unibar Both Ends – Hidden Lace Lacing
No image HLS2 Staple Laced Both Ends – Hidden Lace Lacing
No image HLSSC2 S/S Clipper Laced Both Ends – Hidden Lace Lacing
No image HP Hole Punch Hole Punch
Fabrication LONG - HW
LONG - HW Longitudinal Splice - HW Longitudinal
Fabrication LUG0505-7
LUG0505-7 1/2" x 1/2" Lug - MOR Cleat
Fabrication LUG11-7
LUG11-7 1" x 1" Lug - MOR Cleat
No image MFH1 Megalloy Flexco Hinge Laced One End Lacing
No image MFH2 Megalloy Flexco Hinge Laced Both Ends Lacing
No image MFR1 Megalloy Flexco Rivet Laced One End Lacing
No image MFR2 Megalloy Flexco Rivet Laced Both Ends Lacing
No image MS1 Megalloy Staple Laced One End Lacing
No image MS2 Megalloy Staple Laced Both Ends Lacing
Fabrication P-1
P-1 2 Hole Bucket Punch (P-1) Hole Punch
Fabrication P-2
P-2 3 Hole Bucket Punch (P-2) Hole Punch
Fabrication P-3
P-3 4 Hole Bucket Punch (P-3) Hole Punch
Fabrication P-4
P-4 5 Hole Bucket Punch (P-4) Hole Punch
Fabrication P-5
P-5 6 Hole Bucket Punch (P-5) Hole Punch
Fabrication P-7
P-7 5 Hole Bucket Punch (P-7) Hole Punch
Fabrication P-8
P-8 7 Hole Bucket Punch (P-8) Hole Punch
Fabrication P-9
P-9 9 Hole Bucket Punch (P-9) Hole Punch
No image PE-B Prepared Ends- 2 Ply Lap Endless
No image PE-O Prepared Ends- 3 Ply HT Endless
Fabrication Perforation
Perforation Perforation Hole Punch
Fabrication Planer0505-7
Planer0505-7 1/2" x 1/2" Planer - MOR Chevron
No image RA1 Alligator Laced One End – Recessed Lacing
No image RA2 Alligator Laced Both Ends – Recessed Lacing
Fabrication RC1
RC1 Clipper Laced One End - Recessed Lacing
Fabrication RC2
RC2 Clipper Laced Both Ends - Recessed Lacing
No image RCSU1 Coated Steel Unibar One End – Recessed Lacing
No image RCSU2 Coated Steel Unibar Both Ends – Recessed Lacing
No image RFH1 Flexco Hinge Laced One End - Recessed Lacing
No image RFH2 Flexco Hinge Laced Both Ends - Recessed Lacing
No image RFP3 Flexco Plate Prepared (Lacing Included) - Recessed Lacing
No image RFP3NL Flexco Plate Prepared (No Lacing Included) - Recessed Lacing
No image RFR2 Flexco Rivet Laced Both Ends – Recessed Lacing
No image RMFH1 Megalloy Flexco Hinge Laced One End - Recessed Lacing
No image RMFH2 Megalloy Flexco Hinge Laced Both Ends – Recessed Lacing
No image RMFR1 Megalloy Flexco Rivet Laced One End – Recessed Lacing
No image RMFR2 Megalloy Flexco Rivet Laced Both Ends - Recessed Lacing
No image RMS1 Megalloy Staple Laced One End – Recessed Lacing
No image RMS2 Megalloy Staple Laced Both Ends – Recessed Lacing
No image RP2 Plastic Rivet Laced Both Ends - Recessed Lacing
Fabrication RS1
RS1 Staple Laced One End – Recessed Lacing
Fabrication RS2
RS2 Staple Laced Both Ends – Recessed Lacing
No image RSFH1 S/S Flexco Hinge Laced One End – Recessed Lacing
No image RSFR2 S/S Flexco Rivet Laced Both Ends – Recessed Lacing
Fabrication RSS1
RSS1 S/S Staple Laced One End – Recessed Lacing
No image RSS2 S/S Staple Laced Both Ends – Recessed Lacing
No image RSSA1 S/S Alligator Laced One End – Recessed Lacing
No image RSSA2 S/S Alligator Laced Both Ends – Recessed Lacing
Fabrication RSSC1
RSSC1 S/S Clipper Laced One End - Recessed Lacing
Fabrication RSSC2
RSSC2 S/S Clipper Laced Both Ends - Recessed Lacing
No image RSSU1 S/S Unibar One End – Recessed Lacing
No image RSSU2 S/S Unibar Both Ends – Recessed Lacing
Fabrication S1
S1 Staple Laced One End Lacing
Fabrication S2
S2 Staple Laced Both Ends Lacing
Fabrication SC2-7
SC2-7 2" Scoop Cleat - MOR Cleat
Fabrication SC3-7
SC3-7 3" Scoop Cleat - MOR Cleat
Fabrication SC4-7
SC4-7 4" Scoop Cleat - MOR Cleat
No image SFH1 S/S Flexco Hinge Laced One End Lacing
Fabrication SFH2
SFH2 S/S Flexco Hinge Laced Both Ends Lacing
No image SFR1 S/S Flexco Rivet Laced One End Lacing
No image SFR2 S/S Flexco Rivet Laced Both Ends Lacing
Fabrication SI720
SI720 2" High Sidewall - MOR Sidewall
Fabrication SI725
SI725 2-1/2" High Sidewall - MOR Sidewall
Fabrication SI730
SI730 3" High Sidewall - MOR Sidewall
Fabrication SI735
SI735 3-1/2" High Sidewall - MOR Sidewall
Fabrication SI740
SI740 4" High Sidewall - MOR Sidewall
Fabrication SI745
SI745 4-1/2" High Sidewall - MOR Sidewall
Fabrication SI750
SI750 5" High Sidewall - MOR Sidewall
Fabrication SI755
SI755 5-1/2" High Sidewall - MOR Sidewall
Fabrication SI760
SI760 6" High Sidewall - MOR Sidewall
Fabrication SIC305-7
SIC305-7 3-1/2" SI Cleat - MOR Cleat
Fabrication SIC405-7
SIC405-7 4-1/2" SI Cleat - MOR Cleat
Fabrication SIC505-7
SIC505-7 5-1/2" SI Cleat - MOR Cleat
Fabrication SIC700-2
SIC700-2 7" SI Cleat - SBR Cleat
Fabrication SIC700-7
SIC700-7 7" SI Cleat - MOR Cleat
Fabrication SS1
SS1 S/S Staple Laced One End Lacing
Fabrication SS2
SS2 S/S Staple Laced Both Ends Lacing
Fabrication SSA1
SSA1 S/S Alligator Laced One End Lacing
Fabrication SSA2
SSA2 S/S Alligator Laced Both Ends Lacing
Fabrication SSC1
SSC1 S/S Clipper Laced One End Lacing
Fabrication SSC2
SSC2 S/S Clipper Laced Both Ends Lacing
Fabrication SSU1
SSU1 S/S Unibar One End Lacing
Fabrication SSU2
SSU2 S/S Unibar Both Ends Lacing
Fabrication TC1-7
TC1-7 1" Tee Cleat - MOR Cleat
Fabrication TC105-7
TC105-7 1-1/2" Tee Cleat - MOR Cleat
Fabrication TC2-7
TC2-7 2" Tee Cleat - MOR Cleat
Fabrication TC3-7
TC3-7 3" Tee Cleat - MOR Cleat
Fabrication TC4-7
TC4-7 4" Tee Cleat - MOR Cleat
Fabrication TC5-7
TC5-7 5" Tee Cleat - MOR T-Cleat

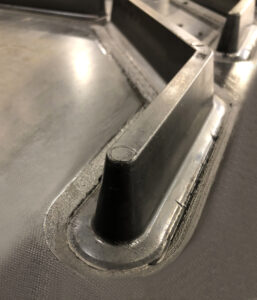

Fabrication VERSA100-7
VERSA100-7 Versa Cleat 1" - MOR Chevron
No image VERSA100D-7 Double Versa Cleat 1" - MOR Chevron
Fabrication VERSA150-7
VERSA150-7 Versa Cleat 1-1/2" - MOR Chevron
No image VERSA150D-7 Double Versa Cleat 1-1/2" - MOR Chevron
