Part #: 5-2531

Part Number: 5-2531

Description:

2 Ply 220 1/8 x 1/16 STD

Color:

Black

Plies:

2

Nominal OAG:

0.3

 +/-

0.03
Fabric:
Polyester/Nylon

Top Surface:

Smooth Cover
Top Cover Thickness:
0.125

Bottom Surface:

Smooth Cover
Bottom Cover Thickness:
0.0625
Compound:
SBR
Work Tension:
220

Elongation:

Less than 4%

Weight:

0.153

Working Temperature:

-20 to 250

Max. Stocked Width:

84

Hardness:

65a
Attributes: Troughable
1 of 1

Related Documents

Minimum Pulley Chart
Tension RatingMin. Pulley Dia. (in)Min. Pulley Dia. (mm)
Over 80%16"406.4 mm
60%-80%14"355.6 mm
40%-60%12"304.8 mm
Below 40%, tails, snubs10"254 mm

Related Documents

Features:

5-2531 features a smooth top and bottom surface with a heavy cover bonded to a high-strength synthetic carcass, producing a long-wearing, mildew-resistant, rot-resistant, and low-stretch belt. This rugged construction delivers excellent durability and stability under harsh operating conditions where abrasion, impact, and continuous loading are present.

220 1/8″ x 1/16″ STD is well suited for high-abrasion applications and performs reliably in sand, gravel, and rock handling, as well as other heavy industrial environments. Its tough cover and structural integrity make it a strong choice for conveyors exposed to aggressive materials and demanding production cycles.

Fabrications for Belt Specification

Image Fabrication Description Fabrication Type
Fabrication 45CHEV05-2
45CHEV05-2 45 Degree Chevron - 1/2" x 1/2" Lug - SBR Chevron
Fabrication 90CHEV05-2
90CHEV05-2 90 Degree Chevron - 1/2" x 1/2" Lug - SBR Chevron
Fabrication 90CHEV1-2
90CHEV1-2 90 Degree Chevron - 1" x 1" Lug - SBR Chevron
Fabrication 90SM12-2
90SM12-2 90 Degree Scrap Metal Chevron - 1" x 2" - SBR Chevron
Fabrication A1
A1 Alligator Laced One End Lacing
Fabrication A2
A2 Alligator Laced Both Ends Lacing
Fabrication AC-2
AC-2 A Section Cleat - SBR Cleat
Fabrication AV-2
AV-2 A Section V-Guide - SBR V-Guide
Fabrication AVN-2
AVN-2 A Section V-Guide Notched - SBR V-Guide
Fabrication B-1
B-1 2 Hole Bucket Punch (B-1) Hole Punch
Fabrication B-2
B-2 3 Hole Bucket Punch (B-2) Hole Punch
Fabrication B-3
B-3 4 Hole Bucket Punch (B-3) Hole Punch
Fabrication B-4
B-4 5 Hole Bucket Punch (B-4) Hole Punch
Fabrication B-5
B-5 6 Hole Bucket Punch (B-5) Hole Punch
Fabrication B-6
B-6 5 Hole Bucket Punch (B-6) Hole Punch
Fabrication B-7
B-7 7 Hole Bucket Punch (B-7) Hole Punch
Fabrication BC-2
BC-2 B Section Cleat - SBR Cleat
Fabrication BC1-2
BC1-2 1" Beefy Cleat - SBR Cleat
Fabrication BC2-2
BC2-2 2" Beefy Cleat - SBR Cleat
Fabrication BC3-2
BC3-2 3" Beefy Cleat - SBR Cleat
Fabrication BC4-2
BC4-2 4" Beefy Cleat - SBR Cleat
Fabrication BV-2
BV-2 B Section V-Guide - SBR V-Guide
Fabrication BVN-2
BVN-2 B Section V-Guide Notched - SBR V-Guide
Fabrication C2
C2 Clipper Laced Both Ends Lacing
Fabrication CC-2
CC-2 C Section Cleat - SBR Cleat
No image CFFR2 Flexco Rivet Laced Both Ends – Cover Flap Lacing
No image CFMFR2 Megalloy Flexco Rivet Laced Both Ends – Cover Flap Lacing
No image CFRP2 Plastic Rivet Laced Both Ends – Cover Flap Lacing
No image CFSFR2 S/S Flexco Rivet Laced Both Ends – Cover Flap Lacing
Fabrication CFSS2
CFSS2 S/S Staple Laced Both Ends – Cover Flap Lacing
Fabrication CV-2
CV-2 C Section V-Guide - SBR V-Guide
Fabrication CVN-2
CVN-2 C Section V-Guide Notched - SBR V-Guide
Fabrication DV-2
DV-2 D Section V-Guide - SBR V-Guide
Fabrication DVN-2
DVN-2 D Section V-Guide Notched - SBR V-Guide
Fabrication E-B
E-B Endless - 2 Ply Lap Endless
Fabrication FH1
FH1 Flexco Hinge Laced One End Lacing
Fabrication FH2
FH2 Flexco Hinge Laced Both Ends Lacing
Fabrication FLG05-2
FLG05-2 1/2" High Flange - SBR Flange
Fabrication FLG05S-2
FLG05S-2 1/2" High Siped Flange - SBR Flange
Fabrication FLG1-2
FLG1-2 1" High Flange - SBR Flange
Fabrication FLG105-2
FLG105-2 1-1/2" High Flange - SBR Flange
Fabrication FLG105S-2
FLG105S-2 1-1/2" High Siped Flange - SBR Flange
Fabrication FLG1S-2
FLG1S-2 1" High Siped Flange - SBR Flange
No image FP3 Flexco Plate Prepared (Lacing Included) Lacing
No image FP3NL Flexco Plate Prepared (No Lacing Included) Lacing
No image FR1 Flexco Rivet Laced One End Lacing
No image FR2 Flexco Rivet Laced Both Ends Lacing
No image HLFR2 Flexco Rivet Laced Both Ends – Hidden Laced Lacing
No image HLMFR2 Megalloy Flexco Rivet Laced Both Ends – Hidden Laced Lacing
No image HLS2 Staple Laced Both Ends – Hidden Lace Lacing
No image HLSFR2 S/S Flexco Rivet Laced Both Ends – Hidden Laced Lacing
No image HLSS2 S/S Staple Laced Both Ends – Hidden Lace Lacing
No image HP Hole Punch Hole Punch
Fabrication LONG - HW
LONG - HW Longitudinal Splice - HW Longitudinal
Fabrication LUG0505-2
LUG0505-2 1/2" x 1/2" Lug - SBR Cleat
Fabrication LUG11-2
LUG11-2 1" x 1" Lug - SBR Cleat
No image MFH1 Megalloy Flexco Hinge Laced One End Lacing
No image MFH2 Megalloy Flexco Hinge Laced Both Ends Lacing
No image MFR1 Megalloy Flexco Rivet Laced One End Lacing
No image MFR2 Megalloy Flexco Rivet Laced Both Ends Lacing
Fabrication P-1
P-1 2 Hole Bucket Punch (P-1) Hole Punch
Fabrication P-2
P-2 3 Hole Bucket Punch (P-2) Hole Punch
Fabrication P-3
P-3 4 Hole Bucket Punch (P-3) Hole Punch
Fabrication P-4
P-4 5 Hole Bucket Punch (P-4) Hole Punch
Fabrication P-5
P-5 6 Hole Bucket Punch (P-5) Hole Punch
Fabrication P-7
P-7 5 Hole Bucket Punch (P-7) Hole Punch
Fabrication P-8
P-8 7 Hole Bucket Punch (P-8) Hole Punch
Fabrication P-9
P-9 9 Hole Bucket Punch (P-9) Hole Punch
No image PE-B Prepared Ends- 2 Ply Lap Endless
No image PE-O Prepared Ends- 3 Ply HT Endless
Fabrication Perforation
Perforation Perforation Hole Punch
Fabrication Planer0505-2
Planer0505-2 1/2" x 1/2" Planer - SBR Chevron
Fabrication Planer0505-7
Planer0505-7 1/2" x 1/2" Planer - MOR Chevron
No image RA1 Alligator Laced One End – Recessed Lacing
No image RA2 Alligator Laced Both Ends – Recessed Lacing
Fabrication RC1
RC1 Clipper Laced One End - Recessed Lacing
Fabrication RC2
RC2 Clipper Laced Both Ends - Recessed Lacing
No image RCSU1 Coated Steel Unibar One End – Recessed Lacing
No image RCSU2 Coated Steel Unibar Both Ends – Recessed Lacing
No image RFH1 Flexco Hinge Laced One End - Recessed Lacing
No image RFH2 Flexco Hinge Laced Both Ends - Recessed Lacing
No image RFP3 Flexco Plate Prepared (Lacing Included) - Recessed Lacing
No image RFP3NL Flexco Plate Prepared (No Lacing Included) - Recessed Lacing
No image RFR1 Flexco Rivet Laced One End - Recessed Lacing
No image RFR2 Flexco Rivet Laced Both Ends – Recessed Lacing
No image RMFH1 Megalloy Flexco Hinge Laced One End - Recessed Lacing
No image RMFH2 Megalloy Flexco Hinge Laced Both Ends – Recessed Lacing
No image RMFR1 Megalloy Flexco Rivet Laced One End – Recessed Lacing
No image RMFR2 Megalloy Flexco Rivet Laced Both Ends - Recessed Lacing
Fabrication RS1
RS1 Staple Laced One End – Recessed Lacing
Fabrication RS2
RS2 Staple Laced Both Ends – Recessed Lacing
No image RSFH1 S/S Flexco Hinge Laced One End – Recessed Lacing
No image RSFH2 S/S Flexco Hinge Laced Both Ends – Recessed Lacing
No image RSFP3 S/S Flexco Plate Prepared- (Lacing Included) - Recessed Lacing
No image RSFR1 S/S Flexco Rivet Laced One End – Recessed Lacing
No image RSFR2 S/S Flexco Rivet Laced Both Ends – Recessed Lacing
Fabrication RSS1
RSS1 S/S Staple Laced One End – Recessed Lacing
No image RSS2 S/S Staple Laced Both Ends – Recessed Lacing
No image RSSA1 S/S Alligator Laced One End – Recessed Lacing
No image RSSA2 S/S Alligator Laced Both Ends – Recessed Lacing
Fabrication SC2-2
SC2-2 2" Scoop Cleat - SBR Cleat
Fabrication SC3-2
SC3-2 3" Scoop Cleat - SBR Cleat
Fabrication SC4-2
SC4-2 4" Scoop Cleat - SBR Cleat
No image SFH1 S/S Flexco Hinge Laced One End Lacing
Fabrication SFH2
SFH2 S/S Flexco Hinge Laced Both Ends Lacing
No image SFP3 S/S Flexco Plate Prepared (Lacing Included) Lacing
No image SFR1 S/S Flexco Rivet Laced One End Lacing
No image SFR2 S/S Flexco Rivet Laced Both Ends Lacing
Fabrication SI220
SI220 2" High Sidewall - SBR Sidewall
Fabrication SI225
SI225 2-1/2" High Sidewall - SBR Sidewall
Fabrication SI230
SI230 3" High Sidewall - SBR Sidewall
Fabrication SI235
SI235 3-1/2" High Sidewall - SBR Sidewall
Fabrication SI240
SI240 4" High Sidewall - SBR Sidewall
Fabrication SI245
SI245 4-1/2" High Sidewall - SBR Sidewall
Fabrication SI250
SI250 5" High Sidewall - SBR Sidewall
Fabrication SI255
SI255 5-1/2" High Sidewall - SBR Sidewall
Fabrication SI260
SI260 6" High Sidewall - SBR Sidewall
Fabrication SI265
SI265 6-1/2" High Fabric Reinforced Sidewall - SBR Sidewall
Fabrication SI270
SI270 7" High Fabric Reinforced Sidewall - SBR Sidewall
Fabrication SI275
SI275 7-1/2" High Fabric Reinforced Sidewall - SBR Sidewall
Fabrication SI280
SI280 8" High Fabric Reinforced Sidewall - SBR Sidewall
Fabrication SI765
SI765 6-1/2" High Fabric Reinforced Sidewall - MOR Sidewall
Fabrication SI770
SI770 7" High Fabric Reinforced Sidewall - MOR Sidewall
Fabrication SI775
SI775 7-1/2" High Fabric Reinforced Sidewall - MOR Sidewall
Fabrication SI780
SI780 8" High Fabric Reinforced Sidewall - MOR Sidewall
Fabrication SIC305-2
SIC305-2 3-1/2" SI Cleat - SBR Cleat
Fabrication SIC405-2
SIC405-2 4-1/2" SI Cleat - SBR Cleat
Fabrication SIC505-2
SIC505-2 5-1/2" SI Cleat - SBR Cleat
Fabrication SIC700-2
SIC700-2 7" SI Cleat - SBR Cleat
Fabrication SM1020-2
SM1020-2 1" x 2" Scrap Metal Lug - SBR Cleat
Fabrication SS35SBRCBS-FI
SS35SBRCBS-FI Super Screw 35, SBR, Gal. Steel, CBS Lacing
Fabrication SS63SBRCBS-FI
SS63SBRCBS-FI Super Screw 63, SBR, Gal. Steel, CBS Lacing
Fabrication SS63SBRCBS-SS-FI
SS63SBRCBS-SS-FI Super Screw 63, SBR, Stainless Steel, CBS Lacing
Fabrication SSA1
SSA1 S/S Alligator Laced One End Lacing
Fabrication SSA2
SSA2 S/S Alligator Laced Both Ends Lacing
Fabrication TC1-2
TC1-2 1" Tee Cleat - SBR Cleat
Fabrication TC105-2
TC105-2 1-1/2" Tee Cleat - SBR Cleat
Fabrication TC2-2
TC2-2 2" Tee Cleat - SBR Cleat
Fabrication TC3-2
TC3-2 3" Tee Cleat - SBR Cleat
Fabrication TC4-2
TC4-2 4" Tee Cleat - SBR Cleat
Fabrication TC5-2
TC5-2 5" Tee Cleat - SBR T-Cleat
Fabrication VERSA100-2
VERSA100-2 Versa Cleat 1" - SBR Chevron
No image VERSA100D-2 Double Versa Cleat 1" - SBR Chevron

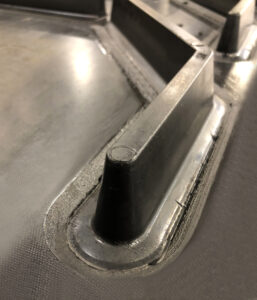

Fabrication VERSA150-2
VERSA150-2 Versa Cleat 1-1/2" - SBR Chevron
No image VERSA150D-2 Double Versa Cleat 1-1/2" - SBR Chevron
