Part #: 5-7532

Part Number: 5-7532

Description:

2 Ply 220 1/8 x 3/32 Cleated Incline – MOR

Color:

Black

Plies:

Nominal OAG:

0.57

+/-

0.03

Recessed OAG:

0.325

Fabric:

Polyester

Top Surface:

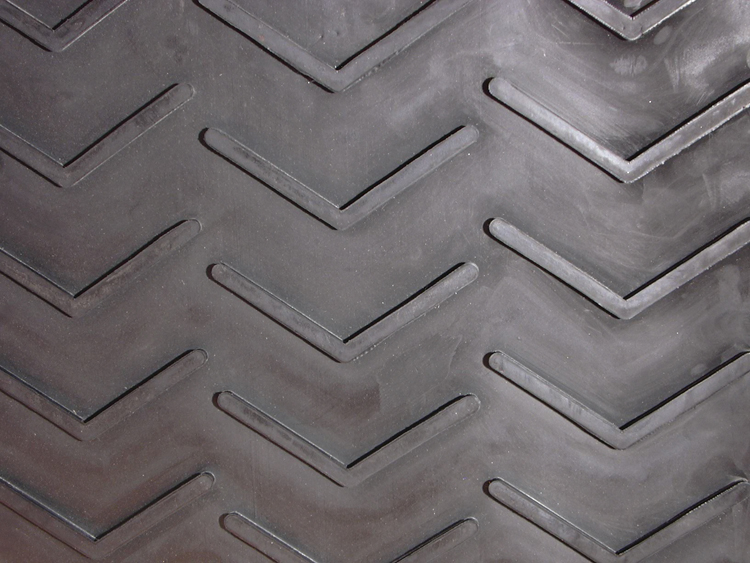

1/4″ Chevron Profile

Top Cover Thickness:

0.125

Bottom Surface:

Smooth Cover

Bottom Cover Thickness:

0.0937

Compound:

MOR

Work Tension:

220

Elongation:

Less than 4%

Weight:

0.214

Working Temperature:

-20 to 225

Max. Stocked Width:

Hardness:

65a

Attributes: Troughable, Oil Resistant, Oil Resistance ASTM D471 70C/72hrs/IRM903 < 20% Swell

1 of 4


Minimum Pulley Chart

Tension Rating	Min. Pulley Dia. (in)	Min. Pulley Dia. (mm)
Over 80%	16"	406.4 mm
60%-80%	14"	355.6 mm
40%-60%	12"	304.8 mm
Below 40%, tails, snubs	10"	254 mm

Features:

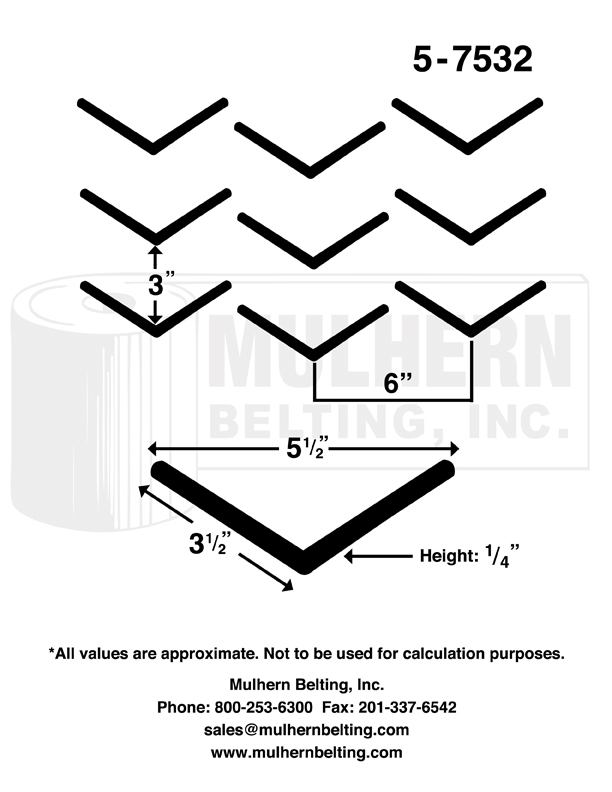

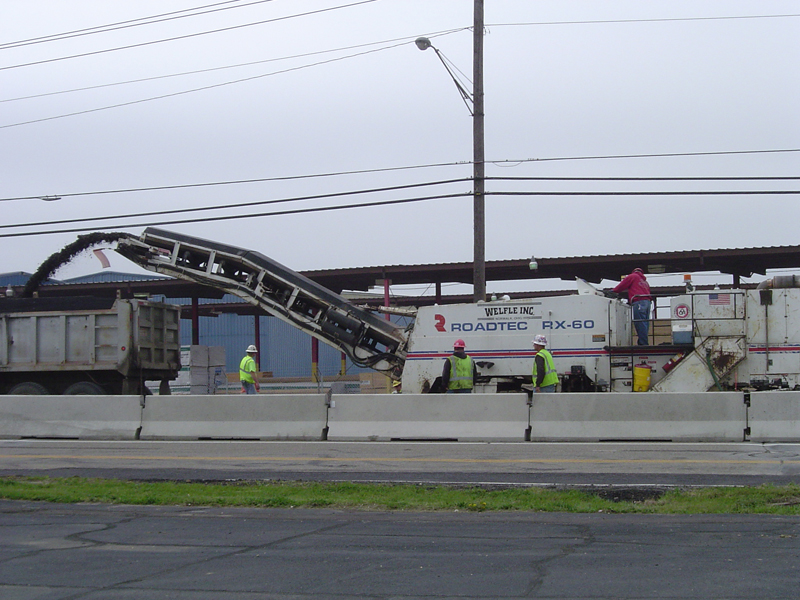

5-7532 combines a 1/4″ x 6″ chevron profile with an MOR compound suitable for oily environments. This belt is commonly installed on road planers and bulk-handling systems moving grain, gravel, and crushed stone. The staggered pattern provides stable material flow even on steep inclines.

Image	Fabrication	Description	Fabrication Type
	AC-7	A Section Cleat - MOR	Cleat
	BC-7	B Section Cleat - MOR	Cleat
	BC2-7	2" Beefy Cleat - MOR	Cleat
	BV-7	B Section V-Guide - MOR	V-Guide
	BVN-7	B Section V-Guide Notched - MOR	V-Guide
	CC-7	C Section Cleat - MOR	Cleat
	CV-7	C Section V-Guide - MOR	V-Guide
	CVN-7	C Section V-Guide Notched - MOR	V-Guide
	DV-7	D Section V-Guide - MOR	V-Guide
	DVN-7	D Section V-Guide Notched - MOR	V-Guide
	E-B	Endless - 2 Ply Lap	Endless
	FH1	Flexco Hinge Laced One End	Lacing
	FLG05-1	1/2" High Flange	Flange
	FLG1-7	1" High Flange - MOR	Flange
	FLG105-7	1-1/2" High Flange - MOR	Flange
No image	HLFR2	Flexco Rivet Laced Both Ends – Hidden Laced	Lacing
No image	HLSS2	S/S Staple Laced Both Ends – Hidden Lace	Lacing
	LONG - HW	Longitudinal Splice - HW	Longitudinal
	LUG0505-7	1/2" x 1/2" Lug - MOR	Cleat
No image	PE-B	Prepared Ends- 2 Ply Lap	Endless
No image	RFH1	Flexco Hinge Laced One End - Recessed	Lacing
No image	RFH2	Flexco Hinge Laced Both Ends - Recessed	Lacing
No image	RFP3	Flexco Plate Prepared (Lacing Included) - Recessed	Lacing
No image	RFP3NL	Flexco Plate Prepared (No Lacing Included) - Recessed	Lacing
No image	RFR1	Flexco Rivet Laced One End - Recessed	Lacing
No image	RFR2	Flexco Rivet Laced Both Ends – Recessed	Lacing
No image	RMFH1	Megalloy Flexco Hinge Laced One End - Recessed	Lacing
No image	RMFH2	Megalloy Flexco Hinge Laced Both Ends – Recessed	Lacing
No image	RMFR2	Megalloy Flexco Rivet Laced Both Ends - Recessed	Lacing
	RS1	Staple Laced One End – Recessed	Lacing
	RS2	Staple Laced Both Ends – Recessed	Lacing
No image	RSFH1	S/S Flexco Hinge Laced One End – Recessed	Lacing
No image	RSFH2	S/S Flexco Hinge Laced Both Ends – Recessed	Lacing
No image	RSFR1	S/S Flexco Rivet Laced One End – Recessed	Lacing
No image	RSFR2	S/S Flexco Rivet Laced Both Ends – Recessed	Lacing
No image	RSS2	S/S Staple Laced Both Ends – Recessed	Lacing
	SIC305-7	3-1/2" SI Cleat - MOR	Cleat

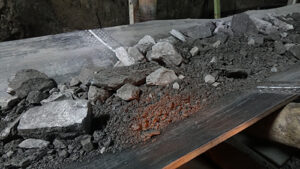

	SS63MORCBS-FI	Super Screw 63, MOR, Gal. Steel, CBS	Lacing
	TC1-7	1" Tee Cleat - MOR	Cleat
	TC2-7	2" Tee Cleat - MOR	Cleat
