Part #: 5-8531

Part Number: 5-8531

Description:

3 Ply 330 1/8 x 1/16 Cleated Incline – SBR

Color:

Black

Plies:

Nominal OAG:

0.595

+/-

0.04

Recessed OAG:

0.35

Fabric:

Polyester/Nylon

Top Surface:

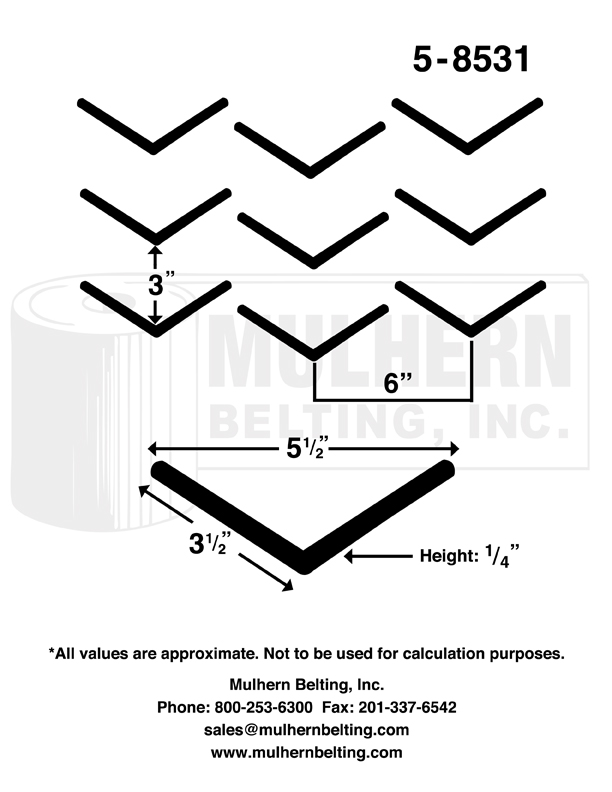

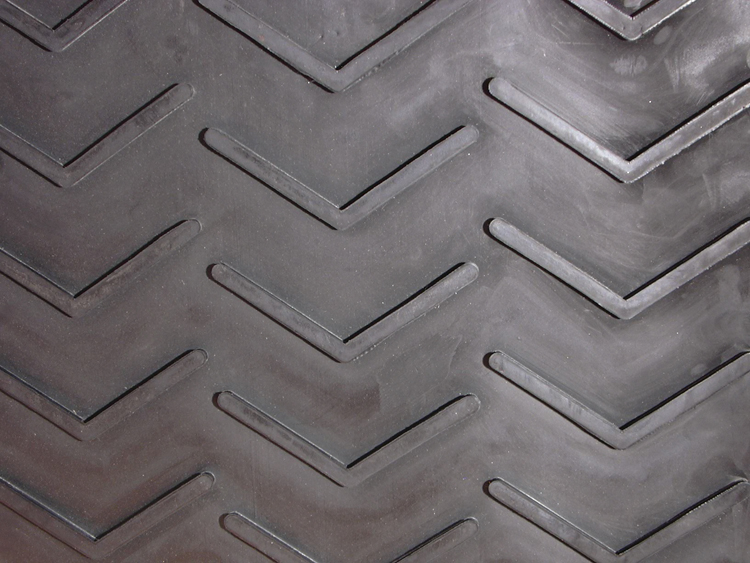

1/4″ Chevron Profile

Top Cover Thickness:

0.125

Bottom Surface:

Smooth Cover

Bottom Cover Thickness:

0.0625

Compound:

SBR

Work Tension:

330

Elongation:

Less than 4%

Weight:

0.225

Working Temperature:

-25 to 250

Max. Stocked Width:

Hardness:

65a

Attributes: Troughable

1 of 3


Minimum Pulley Chart

Tension Rating	Min. Pulley Dia. (in)	Min. Pulley Dia. (mm)
Over 80%	18"	457.2 mm
60%-80%	16"	406.4 mm
40%-60%	14"	355.6 mm
Below 40%, tails, snubs	12"	304.8 mm

Features:

5-8531 delivers a 1/4″ chevron profile on a strong 330-rated carcass, making it suitable for heavier bulk conveying. This belt is well suited for demanding industrial incline applications requiring durability and consistent traction.

Image	Fabrication	Description	Fabrication Type
	AC-2	A Section Cleat - SBR	Cleat
	AV-2	A Section V-Guide - SBR	V-Guide
	AVN-2	A Section V-Guide Notched - SBR	V-Guide
	BC-2	B Section Cleat - SBR	Cleat
	BC1-2	1" Beefy Cleat - SBR	Cleat

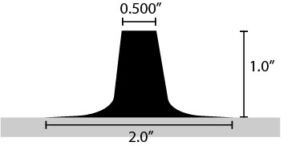

	BC1-7	1" Beefy Cleat - MOR	Cleat
	BC2-2	2" Beefy Cleat - SBR	Cleat
	BC2-7	2" Beefy Cleat - MOR	Cleat
	BC3-2	3" Beefy Cleat - SBR	Cleat
	BC3-7	3" Beefy Cleat - MOR	Cleat
	CC-2	C Section Cleat - SBR	Cleat
No image	CFFR2	Flexco Rivet Laced Both Ends – Cover Flap	Lacing
No image	CFMFR2	Megalloy Flexco Rivet Laced Both Ends – Cover Flap	Lacing
No image	CFRP2	Plastic Rivet Laced Both Ends – Cover Flap	Lacing
No image	CFSFR2	S/S Flexco Rivet Laced Both Ends – Cover Flap	Lacing
	CV-2	C Section V-Guide - SBR	V-Guide
	CVN-2	C Section V-Guide Notched - SBR	V-Guide
	DVN-2	D Section V-Guide Notched - SBR	V-Guide
	E-L	Endless - 3 Ply Lap	Endless
	FLG05-2	1/2" High Flange - SBR	Flange
No image	FP3	Flexco Plate Prepared (Lacing Included)	Lacing
No image	FP3NL	Flexco Plate Prepared (No Lacing Included)	Lacing
	LONG - HW	Longitudinal Splice - HW	Longitudinal
No image	PE-L	Prepared Ends- 3 Ply Lap	Endless
No image	RFH1	Flexco Hinge Laced One End - Recessed	Lacing
No image	RFH2	Flexco Hinge Laced Both Ends - Recessed	Lacing
No image	RFP3	Flexco Plate Prepared (Lacing Included) - Recessed	Lacing
No image	RFP3NL	Flexco Plate Prepared (No Lacing Included) - Recessed	Lacing
No image	RFR1	Flexco Rivet Laced One End - Recessed	Lacing
No image	RFR2	Flexco Rivet Laced Both Ends – Recessed	Lacing
No image	RMFH1	Megalloy Flexco Hinge Laced One End - Recessed	Lacing
No image	RMFH2	Megalloy Flexco Hinge Laced Both Ends – Recessed	Lacing
No image	RMFR1	Megalloy Flexco Rivet Laced One End – Recessed	Lacing
No image	RMFR2	Megalloy Flexco Rivet Laced Both Ends - Recessed	Lacing
No image	RSFH1	S/S Flexco Hinge Laced One End – Recessed	Lacing
No image	RSFH2	S/S Flexco Hinge Laced Both Ends – Recessed	Lacing
No image	RSFP3	S/S Flexco Plate Prepared- (Lacing Included) - Recessed	Lacing
No image	RSFR1	S/S Flexco Rivet Laced One End – Recessed	Lacing
No image	RSFR2	S/S Flexco Rivet Laced Both Ends – Recessed	Lacing
No image	SFP3	S/S Flexco Plate Prepared (Lacing Included)	Lacing
	SI220	2" High Sidewall - SBR	Sidewall
	SI230	3" High Sidewall - SBR	Sidewall
	SI240	4" High Sidewall - SBR	Sidewall
	SS63HTCBS-FI	Super Screw 63, HT, Gal. Steel, CBS	Lacing
	SS63MORCBS-FI	Super Screw 63, MOR, Gal. Steel, CBS	Lacing
	SS63SBRCBS-FI	Super Screw 63, SBR, Gal. Steel, CBS	Lacing
	SS63SBRCBS-SS-FI	Super Screw 63, SBR, Stainless Steel, CBS	Lacing
	SS80SBRCBS-FI	Super Screw 80, SBR, Gal. Steel, CBS	Lacing
	TC1-2	1" Tee Cleat - SBR	Cleat
	TC105-2	1-1/2" Tee Cleat - SBR	Cleat
	TC2-2	2" Tee Cleat - SBR	Cleat
	TC3-2	3" Tee Cleat - SBR	Cleat
