Part #: 5-8532

Part Number: 5-8532

Description:

3 Ply 330 1/8 x 1/16 Cleated Incline – MOR

Color:

Black

Plies:

Nominal OAG:

0.595

+/-

0.04

Recessed OAG:

0.35

Fabric:

Polyester/Nylon

Top Surface:

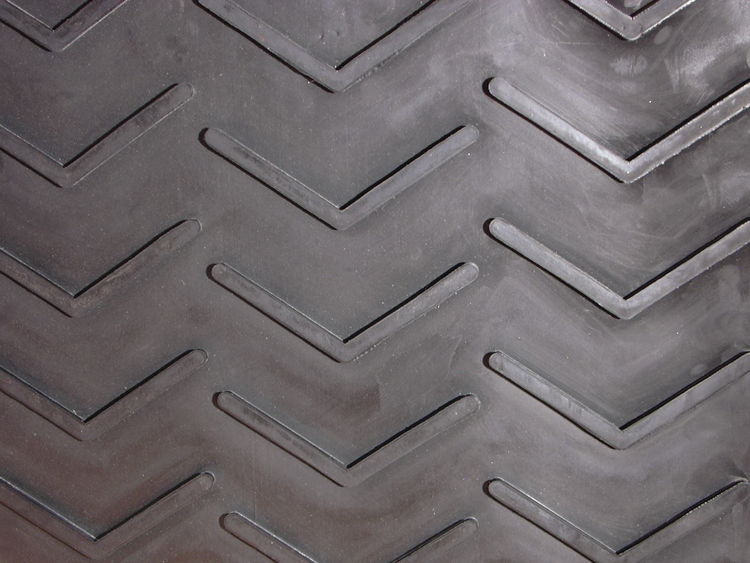

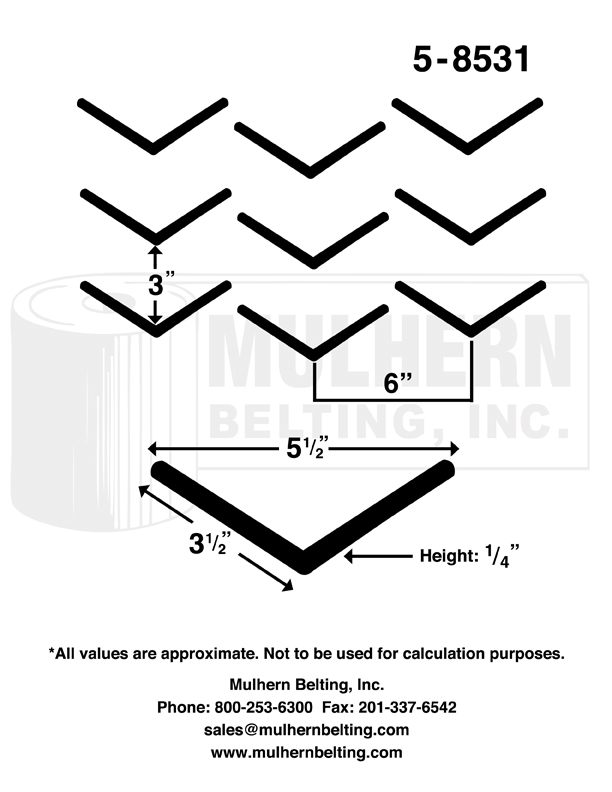

1/4″ Chevron Profile

Top Cover Thickness:

0.125

Bottom Surface:

Smooth Cover

Bottom Cover Thickness:

0.0625

Compound:

MOR

Work Tension:

330

Elongation:

Less than 4%

Weight:

0.225

Working Temperature:

-25 to 225

Max. Stocked Width:

Attributes: Troughable, Oil Resistant, Oil Resistance ASTM D471 70C/72hrs/IRM903 < 20% Swell

1 of 3


Minimum Pulley Chart

Tension Rating	Min. Pulley Dia. (in)	Min. Pulley Dia. (mm)
Over 80%	18"	457.2 mm
60%-80%	16"	406.4 mm
40%-60%	14"	355.6 mm
Below 40%, tails, snubs	12"	304.8 mm

Features:

5-8532 provides a 1/4″ chevron pattern designed for applications involving oily wood products and moderate incline angles. Its MOR compound delivers reliable performance in sawmills, wood processing, and similar environments.

Image	Fabrication	Description	Fabrication Type
	AC-2	A Section Cleat - SBR	Cleat
	AV-7	A Section V-Guide - MOR	V-Guide
	AVN-7	A Section V-Guide Notched - MOR	V-Guide
	BC-2	B Section Cleat - SBR	Cleat
	BC1-2	1" Beefy Cleat - SBR	Cleat
	BC1-7	1" Beefy Cleat - MOR	Cleat
	BC2-2	2" Beefy Cleat - SBR	Cleat
	BC2-7	2" Beefy Cleat - MOR	Cleat
	BC3-2	3" Beefy Cleat - SBR	Cleat
	BC3-7	3" Beefy Cleat - MOR	Cleat
	BV-7	B Section V-Guide - MOR	V-Guide
	BVN-7	B Section V-Guide Notched - MOR	V-Guide
	CC-2	C Section Cleat - SBR	Cleat
No image	CFFH2	Flexco Hinge Laced Both Ends – Cover Flap	Lacing
No image	CFFR2	Flexco Rivet Laced Both Ends – Cover Flap	Lacing
No image	CFMFR2	Megalloy Flexco Rivet Laced Both Ends – Cover Flap	Lacing
No image	CFRP2	Plastic Rivet Laced Both Ends – Cover Flap	Lacing
No image	CFSFH2	S/S Flexco Hinge Laced Both Ends – Cover Flap	Lacing
No image	CFSFR2	S/S Flexco Rivet Laced Both Ends – Cover Flap	Lacing
	CV-7	C Section V-Guide - MOR	V-Guide
	CVN-7	C Section V-Guide Notched - MOR	V-Guide
	DV-7	D Section V-Guide - MOR	V-Guide
	DVN-7	D Section V-Guide Notched - MOR	V-Guide
	E-L	Endless - 3 Ply Lap	Endless
	FLG05-2	1/2" High Flange - SBR	Flange
No image	FP3	Flexco Plate Prepared (Lacing Included)	Lacing
No image	FP3NL	Flexco Plate Prepared (No Lacing Included)	Lacing
	LONG - HW	Longitudinal Splice - HW	Longitudinal
	LUG11-7	1" x 1" Lug - MOR	Cleat
No image	PE-L	Prepared Ends- 3 Ply Lap	Endless
No image	RFH1	Flexco Hinge Laced One End - Recessed	Lacing
No image	RFH2	Flexco Hinge Laced Both Ends - Recessed	Lacing
No image	RFP3	Flexco Plate Prepared (Lacing Included) - Recessed	Lacing
No image	RFP3NL	Flexco Plate Prepared (No Lacing Included) - Recessed	Lacing
No image	RFR1	Flexco Rivet Laced One End - Recessed	Lacing
No image	RFR2	Flexco Rivet Laced Both Ends – Recessed	Lacing
No image	RMFH1	Megalloy Flexco Hinge Laced One End - Recessed	Lacing
No image	RMFH2	Megalloy Flexco Hinge Laced Both Ends – Recessed	Lacing
No image	RMFR1	Megalloy Flexco Rivet Laced One End – Recessed	Lacing
No image	RMFR2	Megalloy Flexco Rivet Laced Both Ends - Recessed	Lacing
No image	RSFH1	S/S Flexco Hinge Laced One End – Recessed	Lacing
No image	RSFH2	S/S Flexco Hinge Laced Both Ends – Recessed	Lacing
No image	RSFP3	S/S Flexco Plate Prepared- (Lacing Included) - Recessed	Lacing
No image	RSFR1	S/S Flexco Rivet Laced One End – Recessed	Lacing
No image	RSFR2	S/S Flexco Rivet Laced Both Ends – Recessed	Lacing
No image	SFP3	S/S Flexco Plate Prepared (Lacing Included)	Lacing
	SI220	2" High Sidewall - SBR	Sidewall
	SI230	3" High Sidewall - SBR	Sidewall
	SI240	4" High Sidewall - SBR	Sidewall
	SIC305-7	3-1/2" SI Cleat - MOR	Cleat
	SS63HTCBS-FI	Super Screw 63, HT, Gal. Steel, CBS	Lacing
	SS63MORCBS-FI	Super Screw 63, MOR, Gal. Steel, CBS	Lacing
	SS63SBRCBS-FI	Super Screw 63, SBR, Gal. Steel, CBS	Lacing
	TC1-2	1" Tee Cleat - SBR	Cleat
	TC105-2	1-1/2" Tee Cleat - SBR	Cleat
	TC2-2	2" Tee Cleat - SBR	Cleat
	TC3-2	3" Tee Cleat - SBR	Cleat
