Part #: 5-8642

Part Number: 5-8642

Description:

2 Ply 150 Mini-Bite 1/32″ x Bare

Color:

Black

Plies:

Nominal OAG:

0.29

+/-

0.03

Fabric:

Polyester

Top Surface:

Mini-Bucket Profile

Top Cover Thickness:

0.0312

Bottom Surface:

Bare

Compound:

SBR

Work Tension:

150

Elongation:

Less than 4%

Weight:

0.085

Minimum Pulley Diameter:

Working Temperature:

-25 to 250

Max. Stocked Width:

Hardness:

65a

Attributes: Troughable

1 of 3


Features:

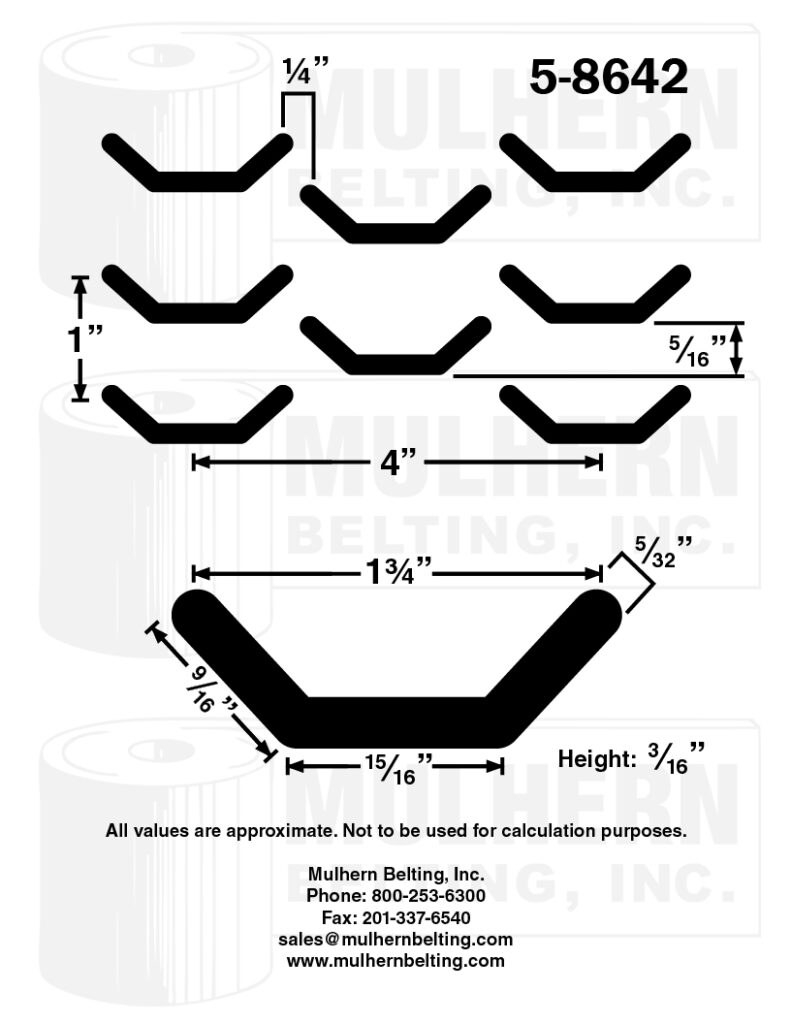

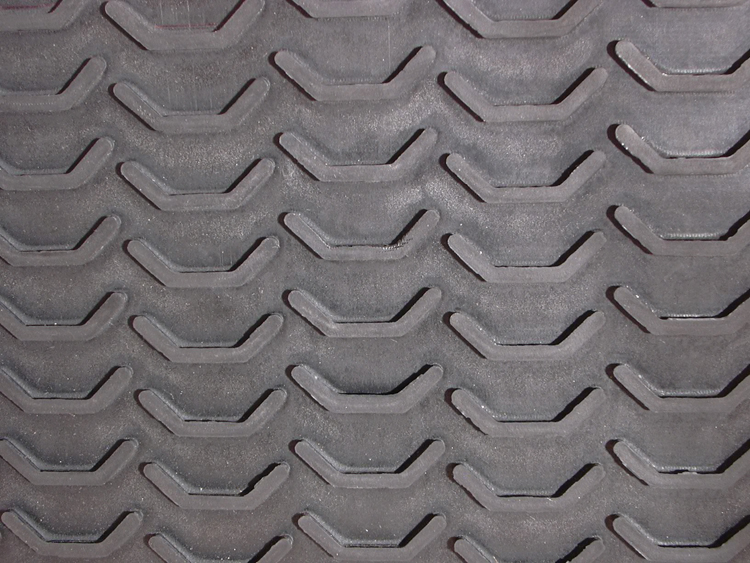

5-8642 features a 3/16″ high by 1-3/4″ wide bucket profile in a staggered pattern. The cleats are spaced on 2″ centers across the belt and 1″ centers down the length. The OAG of the belt includes the profile. 2 Ply 150 Mini-Bite 1/32″ x Bare is popular for carrying gravel, dirt and sands. It is also used in the recycling industry.

Image	Fabrication	Description	Fabrication Type
	AC-2	A Section Cleat - SBR	Cleat
	AV-2	A Section V-Guide - SBR	V-Guide
	BC-2	B Section Cleat - SBR	Cleat
	BC1-2	1" Beefy Cleat - SBR	Cleat
	BV-2	B Section V-Guide - SBR	V-Guide
	BVN-2	B Section V-Guide Notched - SBR	V-Guide
	CC-2	C Section Cleat - SBR	Cleat
	CV-2	C Section V-Guide - SBR	V-Guide
	CVN-2	C Section V-Guide Notched - SBR	V-Guide
	CVN-6	C Section N-Guide Notched - RAV	V-Guide
	E-B	Endless - 2 Ply Lap	Endless
	FH1	Flexco Hinge Laced One End	Lacing
	FH2	Flexco Hinge Laced Both Ends	Lacing
	FLG105S-2	1-1/2" High Siped Flange - SBR	Flange
No image	HLC2	Clipper Laced Both Ends – Hidden Lace	Lacing
	LONG - HW	Longitudinal Splice - HW	Longitudinal
No image	MFH1	Megalloy Flexco Hinge Laced One End	Lacing
No image	MFH2	Megalloy Flexco Hinge Laced Both Ends	Lacing
No image	PE-B	Prepared Ends- 2 Ply Lap	Endless
No image	PE-O	Prepared Ends- 3 Ply HT	Endless
	Perforation	Perforation	Hole Punch
No image	RA1	Alligator Laced One End – Recessed	Lacing
No image	RA2	Alligator Laced Both Ends – Recessed	Lacing
	RC1	Clipper Laced One End - Recessed	Lacing
	RC2	Clipper Laced Both Ends - Recessed	Lacing
No image	RCSU1	Coated Steel Unibar One End – Recessed	Lacing
No image	RCSU2	Coated Steel Unibar Both Ends – Recessed	Lacing
No image	RFH1	Flexco Hinge Laced One End - Recessed	Lacing
No image	RFH2	Flexco Hinge Laced Both Ends - Recessed	Lacing
No image	RFP3NL	Flexco Plate Prepared (No Lacing Included) - Recessed	Lacing
No image	RFR1	Flexco Rivet Laced One End - Recessed	Lacing
No image	RFR2	Flexco Rivet Laced Both Ends – Recessed	Lacing
No image	RMFR2	Megalloy Flexco Rivet Laced Both Ends - Recessed	Lacing
No image	RMS1	Megalloy Staple Laced One End – Recessed	Lacing
No image	RMS2	Megalloy Staple Laced Both Ends – Recessed	Lacing
No image	RP2	Plastic Rivet Laced Both Ends - Recessed	Lacing
	RS1	Staple Laced One End – Recessed	Lacing
	RS2	Staple Laced Both Ends – Recessed	Lacing
No image	RSFR2	S/S Flexco Rivet Laced Both Ends – Recessed	Lacing
	RSS1	S/S Staple Laced One End – Recessed	Lacing
No image	RSS2	S/S Staple Laced Both Ends – Recessed	Lacing
No image	RSSA1	S/S Alligator Laced One End – Recessed	Lacing
No image	RSSA2	S/S Alligator Laced Both Ends – Recessed	Lacing
	RSSC1	S/S Clipper Laced One End - Recessed	Lacing
	RSSC2	S/S Clipper Laced Both Ends - Recessed	Lacing
No image	RSSU1	S/S Unibar One End – Recessed	Lacing
No image	RSSU2	S/S Unibar Both Ends – Recessed	Lacing
No image	SFH1	S/S Flexco Hinge Laced One End	Lacing
	SFH2	S/S Flexco Hinge Laced Both Ends	Lacing
	SI220	2" High Sidewall - SBR	Sidewall
	SI225	2-1/2" High Sidewall - SBR	Sidewall
	SI230	3" High Sidewall - SBR	Sidewall
	SI235	3-1/2" High Sidewall - SBR	Sidewall
	SI240	4" High Sidewall - SBR	Sidewall
	SI245	4-1/2" High Sidewall - SBR	Sidewall
	SI250	5" High Sidewall - SBR	Sidewall
	TC1-2	1" Tee Cleat - SBR	Cleat
	TC2-2	2" Tee Cleat - SBR	Cleat
	TC3-2	3" Tee Cleat - SBR	Cleat
