Part #: 5-8721

Part Number: 5-8721

Description:

2 Ply 180 Continuous Chevron x 1/64″ Impression

Color:

Black

Plies:

Nominal OAG:

0.265

+/-

0.03

Recessed OAG:

0.145

Lacing Options?

Fabric:

Polyester/Nylon

Top Surface:

Continuous Chevron

Bottom Surface:

Rough Texture

Bottom Cover Thickness:

0.0156

Compound:

SBR

Chemical Resistance?

Work Tension:

180

Elongation:

Less than 4%

Weight:

0.085

Minimum Pulley Diameter:

Working Temperature:

-20 to 250

Max. Stocked Width:

Hardness:

65a

Attributes: Troughable

1 of 2


Features:

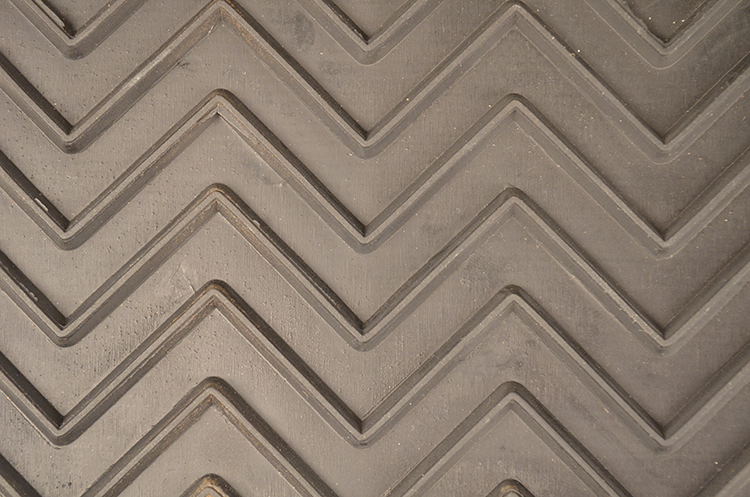

Mulhern Belting’s 5-8721 features a continuous chevron profile engineered for reliable movement of free-flowing bulk materials on inclines. The uninterrupted pattern provides strong directional grip, while the belt’s construction allows it to negotiate small pulley diameters, expanding its compatibility across various equipment types.

This specification is widely used in

Tubeveyors

Railcar unloading systems

Agricultural handling (grain, corn, soy, feed)

Packaging and bulk transfer equipment

The chevron profile excels with loose materials that require controlled movement without slippage—making it ideal for grain, gravel, powders, pellets, and other flowable commodities.

This belt is also commonly paired with Street Sweeper cleats when additional lift or aggressive material collection is required.

Image	Fabrication	Description	Fabrication Type
	AC-2	A Section Cleat - SBR	Cleat
	AV-2	A Section V-Guide - SBR	V-Guide
	BC-2	B Section Cleat - SBR	Cleat
	BV-2	B Section V-Guide - SBR	V-Guide
	BVN-2	B Section V-Guide Notched - SBR	V-Guide
	CC-2	C Section Cleat - SBR	Cleat
	CV-2	C Section V-Guide - SBR	V-Guide
	CVN-2	C Section V-Guide Notched - SBR	V-Guide
	CVN-6	C Section N-Guide Notched - RAV	V-Guide
	E-B	Endless - 2 Ply Lap	Endless
	FH1	Flexco Hinge Laced One End	Lacing
	FH2	Flexco Hinge Laced Both Ends	Lacing
No image	HLC2	Clipper Laced Both Ends – Hidden Lace	Lacing
	LONG - HW	Longitudinal Splice - HW	Longitudinal
No image	MFH1	Megalloy Flexco Hinge Laced One End	Lacing
No image	MFH2	Megalloy Flexco Hinge Laced Both Ends	Lacing
No image	PE-B	Prepared Ends- 2 Ply Lap	Endless
No image	PE-O	Prepared Ends- 3 Ply HT	Endless
	Perforation	Perforation	Hole Punch
No image	RA1	Alligator Laced One End – Recessed	Lacing
No image	RA2	Alligator Laced Both Ends – Recessed	Lacing
	RC1	Clipper Laced One End - Recessed	Lacing
	RC2	Clipper Laced Both Ends - Recessed	Lacing
No image	RCSU1	Coated Steel Unibar One End – Recessed	Lacing
No image	RCSU2	Coated Steel Unibar Both Ends – Recessed	Lacing
No image	RFH1	Flexco Hinge Laced One End - Recessed	Lacing
No image	RFH2	Flexco Hinge Laced Both Ends - Recessed	Lacing
No image	RFP3NL	Flexco Plate Prepared (No Lacing Included) - Recessed	Lacing
No image	RFR1	Flexco Rivet Laced One End - Recessed	Lacing
No image	RFR2	Flexco Rivet Laced Both Ends – Recessed	Lacing
No image	RMFR2	Megalloy Flexco Rivet Laced Both Ends - Recessed	Lacing
No image	RMS1	Megalloy Staple Laced One End – Recessed	Lacing
No image	RMS2	Megalloy Staple Laced Both Ends – Recessed	Lacing
No image	RP2	Plastic Rivet Laced Both Ends - Recessed	Lacing
	RS1	Staple Laced One End – Recessed	Lacing
	RS2	Staple Laced Both Ends – Recessed	Lacing
No image	RSFR2	S/S Flexco Rivet Laced Both Ends – Recessed	Lacing
	RSS1	S/S Staple Laced One End – Recessed	Lacing
No image	RSS2	S/S Staple Laced Both Ends – Recessed	Lacing
No image	RSSA1	S/S Alligator Laced One End – Recessed	Lacing
No image	RSSA2	S/S Alligator Laced Both Ends – Recessed	Lacing
	RSSC1	S/S Clipper Laced One End - Recessed	Lacing
	RSSC2	S/S Clipper Laced Both Ends - Recessed	Lacing
No image	RSSU1	S/S Unibar One End – Recessed	Lacing
No image	RSSU2	S/S Unibar Both Ends – Recessed	Lacing
No image	SFH1	S/S Flexco Hinge Laced One End	Lacing
	SFH2	S/S Flexco Hinge Laced Both Ends	Lacing
	SI220	2" High Sidewall - SBR	Sidewall
	SI225	2-1/2" High Sidewall - SBR	Sidewall
	SI230	3" High Sidewall - SBR	Sidewall
	SI235	3-1/2" High Sidewall - SBR	Sidewall
	SI240	4" High Sidewall - SBR	Sidewall
	SI245	4-1/2" High Sidewall - SBR	Sidewall
	SI250	5" High Sidewall - SBR	Sidewall
	SS35SBRCBS-FI	Super Screw 35, SBR, Gal. Steel, CBS	Lacing
	TC1-2	1" Tee Cleat - SBR	Cleat
	TC2-2	2" Tee Cleat - SBR	Cleat
	TC3-2	3" Tee Cleat - SBR	Cleat
