Part #: 1-1175

Part Number: 1-1175

Description:

U2W Poli Quad-Q

Color:

White

Plies:

Nominal OAG:

0.07

+/-

0.015

Fabric:

Monofilament

Top Surface:

Quad Profile

Bottom Surface:

Bare

Compound:

Poly Urethane

Work Tension:

Elongation:

Less than 1%

Weight:

0.03

Minimum Pulley Diameter:

0.6

Back Flex Min. Pulley Diameter:

Working Temperature:

-4 to 176

Max. Stocked Width:

78.75

Hardness:

90a

Attributes: Abrasion Resistant, Anti-Static, Cross Rigid, FDA Compliant, Sliderbed Suitable, Oil Resistant

1 of 3

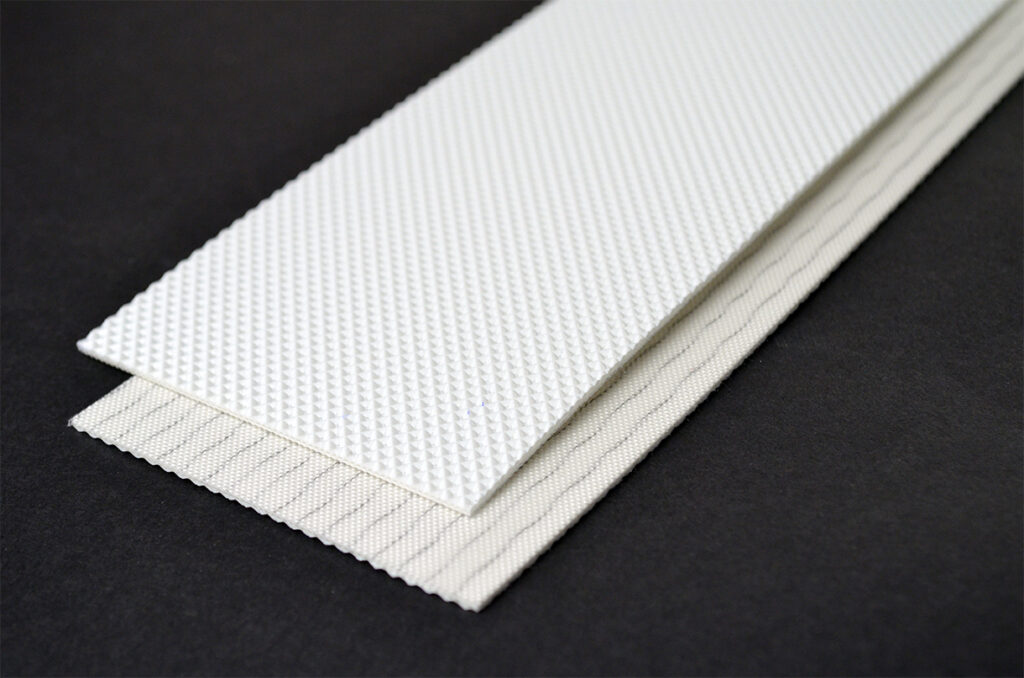

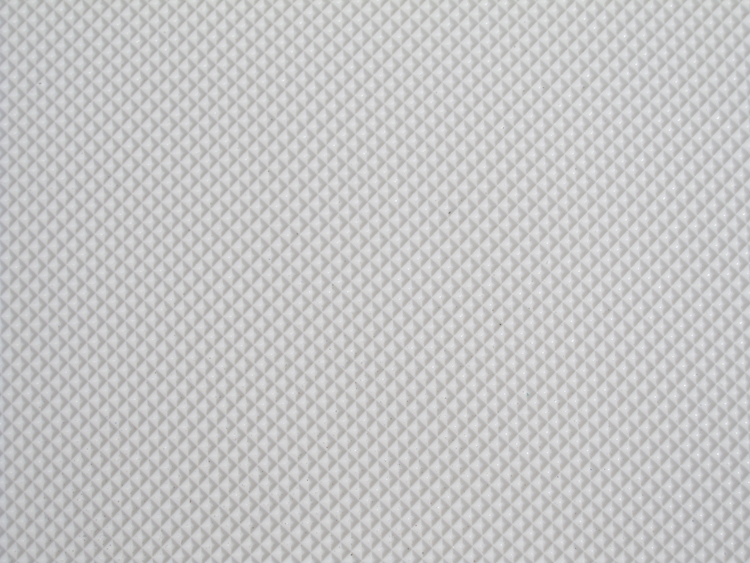

1-1175 Close Up

Features:

U2W Poli Quad-Q incorporates a thin, lightweight monofilament carcass with cross-rigid support, engineered to provide a perfectly flat carrying surface and prevent material buildup. The anti-static profile enhances stability in sensitive environments.

This belt offers easy cleaning, smooth discharge characteristics, and hygienic performance under continuous operation.

Poli Quad-Q is used in cosmetics, pharmaceuticals, extruded rubber processing, pastry production, and general FDA-regulated food applications.

Image	Fabrication	Description	Fabrication Type
	A1	Alligator Laced One End	Lacing
	A2	Alligator Laced Both Ends	Lacing
	AC-4	A Section Cleat - Urethane	Cleat
	AV-4	A Section V-Guide - Urethane	V-Guide
	AVN-4	A Section V-Guide Notched - Urethane	V-Guide
	BC-4	B Section Cleat - Urethane	Cleat
	BV-4	B Section V-Guide - Urethane	V-Guide
	C1	Clipper Laced One End	Lacing
	C2	Clipper Laced Both Ends	Lacing

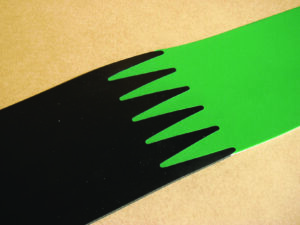

	E-C	Endless – Finger Splice	Endless

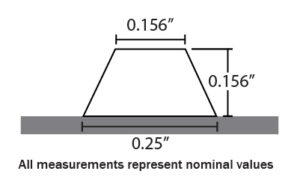

	K6V-6	K6 Section V-Guide - RAV	V-Guide
	K6VN-6	K6 Section V-Guide Notched - RAV	V-Guide
	OV-4	O Section V-Guide - Urethane	V-Guide
	OVN-4	O Section V-Guide Notched - Urethane	V-Guide
No image	PE-C	Prepared Ends- Finger Splice	Endless
No image	PE-J	Prepared Ends - Skived Splice	Endless
	Perforation	Perforation	Hole Punch
	S2	Staple Laced Both Ends	Lacing
	SL2	Spiral Laced Both Ends	Lacing
	SSA1	S/S Alligator Laced One End	Lacing
	SSA2	S/S Alligator Laced Both Ends	Lacing
	SSC2	S/S Clipper Laced Both Ends	Lacing
	SSU1	S/S Unibar One End	Lacing
	SSU2	S/S Unibar Both Ends	Lacing
